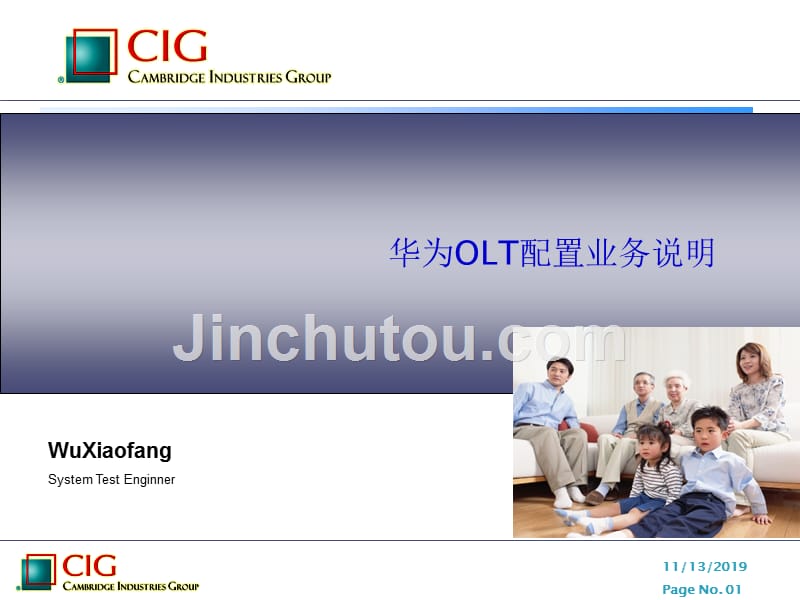

华为OLT配置业务说明,,,,WuXiaofang System Test Enginner,摘要,1,Vlan配置 2,DBA profile 配置 3,线路模板：gpon-lineprofile配置 4,业务模板：ont-srvprofile配置 5,ONT注册 6,流量模板配置 7,service port配置 8,vlan与上联口关联 9,组播配置 10,删除业务,业务结构图,,vlan,Dba profile,Line-profile,service-profile,ONT,流量模板,service port,Vlan配置,Vlan的几种类型： MA5600T(config)#vlan 601 ? --------------------------------------------- Command of config Mode: --------------------------------------------- Please press ENTER to execute command to VLAN range vlantype VLAN type 创建指令： MA5600T(config)#vlan 601 smart MA5600T(config)#vlan 602 to 606 smart MA5600T(config)#vlan 701 to 706 smart,Vlan配置,显示所有vlan指令： MA5600T(config)#display vlan all { |vlanattr|vlantype }: Command: display vlan all --------------------------------------------------------- VLAN Type Attribute STND-Port NUM SERV-Port NUM --------------------------------------------------------- 1 smart common 4 0 2 smart common 4 0 10 smart common 1 0 30 smart common 4 0 70 smart common 4 0,DBA profile配置,DBA profile 的几种操作： MA5600T(config)#dba-profile ? --------------------------------------------- Command of config Mode: --------------------------------------------- add Add a DBA profile delete Delete a DBA profile modify Modify a DBA profile configuration,DBA profile配置,DBA profile中几种type: MA5600T(config)#dba-profile add ? --------------------------------------------- Command of config Mode: --------------------------------------------- profile-id DBA profile ID profile-name DBA profile name type1 Fixed bandwidth type2 Assured bandwidth type3 Assured bandwidth, Maximum bandwidth type4 Maximum bandwidth type5 Fixed bandwidth, Assured bandwidth, Maximum bandwidth DBA profile 创建指令： MA5600T(config)#dba-profile add profile-id 2 type5 fix 10240 assure 10240 max 1024000 注意：MAX值一定要大于assure值。
DBA profile配置,显示所有配置的DBA profile: MA5600T(config)#display dba-profile all ---------------------------------------------------------------------------- Profile-ID type Bandwidth Fix Assure Max Bind compensation (kbps) (kbps) (kbps) times ---------------------------------------------------------------------------- 1 1 No 5120 0 0 9 2 4 No 0 0 1024000 2 3 3 No 0 800000 1024000 0 4 1 No 1024000 0 0 0,线路模板：gpon-lineprofile,line profile主要配置GEM，TCONT，eth port,vlan的mapping关系.TCONT与GEM mapping的分两种模式： 1,一个TCONT对应一个GEM 2,一个TCONT对应多个GEM,,线路模板：gpon-lineprofile,1,一个TCONT对应一个GEM配置： 创建gpon-lineprofile ID MA5600T(config)#ont-lineprofile gpon profile-id 10 profile-name wxf_1 MA5600T(config-gpon-lineprofile-10)#? --------------------------------------------- Command of (config-gpon-lineprofile-10)# Mode: --------------------------------------------- commit Commit profile data display Display information fec-upstream Configure the upstream FEC function gem GEM configuration command group mapping-mode Set the line profile's mapping mode omcc ONT management and control channel port-bundle ONT port bundle function qos-mode Set the line profile's QoS mode quit Exit from current mode and enter prior mode return Enter the privileged mode switch Switch language mode tcont Bind the DBA profile to the T-CONT tr069-management Configure the tr069 management function undo Negate a command or set its defaults,线路模板：gpon-lineprofile,创建tcont，tcont与BW绑定指令: MA5600T(config-gpon-lineprofile-10)#tcont 1-6 dba-profile-id 2 gem 与tcont的mapping关系： MA5600T(config-gpon-lineprofile-10)#gem add 1 eth tcont 1 MA5600T(config-gpon-lineprofile-10)#gem add 2 eth tcont 2 MA5600T(config-gpon-lineprofile-10)#gem add 3 eth tcont 3 MA5600T(config-gpon-lineprofile-10)#gem add 4 eth tcont 4 MA5600T(config-gpon-lineprofile-10)#gem add 5 eth tcont 5 MA5600T(config-gpon-lineprofile-10)#gem add 6 eth tcont 6,线路模板：gpon-lineprofile,Mapping 模式设置： MA5600T(config-gpon-lineprofile-10)#mapping-mode ? --------------------------------------------- Command of (config-gpon-lineprofile-10)# Mode: --------------------------------------------- iptos IP TOS port PORT port-priority PORT+802.1p priority port-vlan PORT+VLAN port-vlan-priority PORT+VLAN+802.1p priority priority 802.1p priority vlan VLAN vlan-priority VLAN+802.1p priority MA5600T(config-gpon-lineprofile-10)#mapping-mode port-vlan-priority,,Gem,eth port,vlan mapping关系 MA5600T(config-gpon-lineprofile-10)#gem mapping 1 1 eth 1 vlan 600 priority 0 MA5600T(config-gpon-lineprofile-10)#gem mapping 2 2 eth 1 vlan 601 priority 0 MA5600T(config-gpon-lineprofile-10)#gem mapping 3 3 eth 1 vlan 602 priority 5 MA5600T(config-gpon-lineprofile-10)#gem mapping 4 4 eth 1 vlan 603 priority 3 MA5600T(config-gpon-lineprofile-10)#gem mapping 5 5 eth 1 vlan 604 priority 0 MA5600T(confi。
