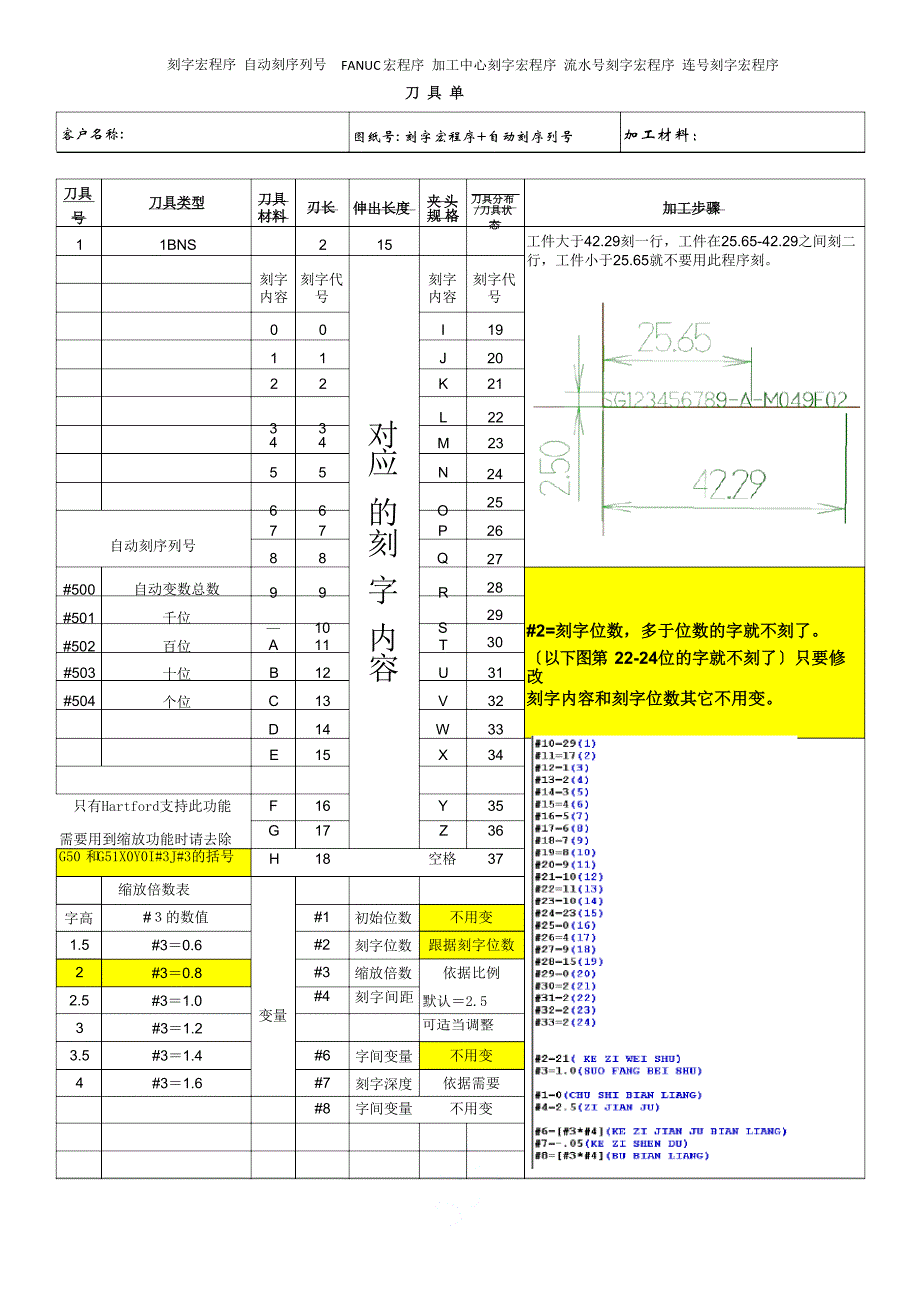

刻字宏程序 自动刻序列号FANUC 宏程序 加工中心刻字宏程序 流水号刻字宏程序 连号刻字宏程序客户名称:图纸号: 刻字宏程序+自动刻序列号加工材料：刀 具 单刀具 刀具类型态1 1BNS215刻字内容刻字代号刻字内容刻字代号00I1911J2022K21号刀具 刃长材料伸出长度夹头 刀具分布规格 /刀具状加工步骤工件大于42.29刻一行，工件在25.65-42.29之间刻二行，工件小于25.65就不要用此程序刻500#501#502自动刻序列号自动变数总数千位百位3 3 对L22M234 45 5 应 N6 6 的 O刻7 7 P8 8 Q9 9 字 R— 10 内 S#503十位B12容U31#504个位C13V32D14W33E15X34A 11 T242526272829#2=刻字位数，多于位数的字就不刻了30〔以下图第 22-24位的字就不刻了〕只要修改刻字内容和刻字位数其它不用变F16Y35G17Z36H18空格37只有Hartford支持此功能需要用到缩放功能时请去除G50 和G51X0Y0I#3J#3的括号缩放倍数表字高1.52#３的数值#3＝0.6 #3＝0.8#1 初始位数#2 刻字位数#3 缩放倍数不用变跟据刻字位数依据比例2.5#3＝1.0#4 刻字间距 默认＝2.53#3＝1.2可适当调整3.5#3＝1.4#6字间变量不用变4#3＝1.6#7#8刻字深度字间变量依据需要不用变变量刻字宏程序+自动刻序列号 REV21. 刻字范围 0-9 A-Z2. 刻字位数 243. 支持字高 1.5-4MM4. 刻字宏程序文件大小 8KB5. 自动刻序列号6.把 O0001 到 M30 之间内容复制到记事本，保存成NC 文件。
O0001(AUTOMANTION KEZI PROGRAM)G90G10L2P0X0Y0.0Z0.05 G90G10L2P1X0.Y0.Z0 M98P9002#500=#500+1 (ZONG SHUO) #501=FIX[#500/1000] (QIAN WEI) #502=FIX[[#500-#501*1000]/100] (BAI WEI)#503=FIX[[#500-#501*1000-#502*100]/10] (SHI WEI) #504=FIX[#500-#501*1000-#502*100-#503*10] (GE WEI)#10=29(1)#11=17(2)#12=1(3)#13=2(4)#14=3(5)#15=4(6)#16=5(7)#17=6(8)#18=7(9)#19=8(10)#20=9(11)#21=10(12)#22=11(13)#23=10(14)#24=23(15)#25=0(16)#26=4(17)#27=9(18)#28=15(19)#29=0(20)#30=2(21)#31=2(22)#32=2(23)#33=2(24)#2=21( KE ZI WEI SHU) #3=1.0(SUO FANG BEI SHU)#1=0(CHU SHI BIAN LIANG) #4=2.5(ZI JIAN JU)#6=[#3*#4](KE ZI JIAN JU BIAN LIANG) #7=-.05(KE ZI SHEN DU) #8=[#3*#4](BU BIAN LIANG)(G50)G90G52X0Y0( 1BNS ) N100T1 M6G90G10L12P60R0.00 G90G54G0X0Y0S3000M3 G43H#4120Z5./M8 (G50)G90G52X0Y0 (G51X0Y0I#3J#3)N1#1=[#1+1](BIAN LIANG) IF[#1LE#2]GOTO[#1+99](G50) G90G52X0Y0 GOTO99N100 GOTO[#10+10]N101 GOTO[#11+10]N102 GOTO[#12+10]N103 GOTO[#13+10]N104 GOTO[#14+10]N105 GOTO[#15+10]N106 GOTO[#16+10]N107 GOTO[#17+10]N108 GOTO[#18+10]N109 GOTO[#19+10]N110 GOTO[#20+10]N111 GOTO[#21+10]N112 GOTO[#22+10]N113 GOTO[#23+10]N114 GOTO[#24+10]N115 GOTO[#25+10]N116 GOTO[#26+10]N117 GOTO[#27+10]N118 GOTO[#28+10]N119 GOTO[#29+10]N120 GOTO[#30+10]N121 GOTO[#31+10]N122 GOTO[#32+10]N123 GOTO[#33+10]N10 (0)X.148Y2.092Z1.G1Z#7F100.G3Y.408I2.316J-.842F300. X1.316I.584J.208Y2.092I-2.316J.842 X.148I-.584J-.208 G0Z5.G52G90X#6Y0 #6=[#6+#8] GOTO1N11(1) X.714Y0. Z1.G1Z#7F100. X.357F300. Y2.5 X0.Y2.143 G0Z5.Y0.Z1.G1Z#7F100.X.357F300.G0Z5.G52G90X[#6-[#8*0.4]]Y0 #6=[#6+[#8*0.6]] GOTO1N12(2) X.054Y2.143 Z1.G1Z#7F100.G2X.672Y2.5I.619J-.357F300.G1X.728G2X1.441Y1.818I0.J-.714 X1.257Y1.37I-.714J.032 X.614Y.891I-3.861J4.503 G3X0.Y0.I.58J-1.057 G1X1.495G0Z5. G52G90X#6Y0 #6=[#6+#8] GOTO1N13(3) X.036Y2.143 Z1.G1Z#7F100.G2X.658Y2.5I.622J-.364F300. G1X.75G2X1.269Y2.305I0.J-.788 X1.464Y1.875I-.376J-.43 X.933Y1.252I-.631J0.G1X.755 G0Z5.X.933 Z1.G1Z#7F100.G2X1.5Y.625I-.064J-.627F300. X1.305Y.195I-.571J0.X.786Y0.I-.519J.593 G1X.622 G2X0.Y.357I0.J.721 G0Z5.G52G90X#6Y0 #6=[#6+#8] GOTO1N14(4) X1.661Y.589 Z1.G1Z#7F100.X0.F300.X1.295Y2.5 Y0.G0Z5. G52G90X#6Y0 #6=[#6+#8] GOTO1N15(5) X0.Y.355 Z1.G1Z#7F100. G3X.14Y.194I.664J.438F300. X.664Y-.003I.524J.599 G1X.777Y-.002 G3X1.458Y.393I0.J.785 X1.429Y1.25I-.708J.405 X1.137Y1.507I-.63J-.42 X.714Y1.607I-.423J-.846 X0.Y1.393I-.043J-1.153 G1Y2.5X1.511 G0Z5.G52G90X#6Y0#6=[#6+#8] GOTO1N16(6) X.093Y.565 Z1.G1Z#7F100. G3X1.522Y.515I.722J.179F300. X.093Y.565I-.708J.226 G2X.143Y1.992I2.133J.64 X1.498Y2.128I.707J-.229 G0Z5.G52G90X#6Y0 #6=[#6+#8] GOTO1N17(7) X0.Y2.5 Z1.G1Z#7F100.X1.5F300.G3X.75Y0.I3.793J-2.5 G0Z5.G52G90X#6Y0 #6=[#6+#8] GOTO1N18(8) X.67Y1.339 Z1.G1Z#7F100.X.83F300.G3X1.411Y1.92I0.J.58 X.83Y2.5I-.58J0.G1X.67 G3X.401Y2.434I0.J-.58 X.67Y1.339I.268J-.515 X.119Y.289I0.J-.67 X.67Y0.I.551J.381 G1X.83 G3X1.5Y.67I0.J.67 X.83Y1.339I-.67J0.G0Z5. G52G90X#6Y0 #6=[#6+#8] GOTO1N19(9)X.034Y1.985 Z1.G1Z#7F100. G3X1.463Y1.935I.708J-.226F300. X.034Y1.985I-.722J-.179G0Z5. X1.463Y1.935 Z1.G1Z#7F100.G2X1.413Y.507I-2.133J-.64F300. X.057Y.372I-.707J.229G0Z5. G52G90X#6Y0 #6=[#6+#8] GOTO1N20(-) X0.Y1.25 Z1.G1Z#7F100. X1.429F300. G0Z5.X1.25 Z1.G1Z#7F100.X.179F300.G0Z5.G52G90X#6Y0 #6=[#6+#8] GOTO1N21(A) X.201Y.536 Z1.G1Z#7F100. X1.674F300. X1.875Y0.G0Z5. X1.674Y.536 Z1.G1Z#7F100. X.938Y2.5F300. X.201Y.536 X0.Y0.。
