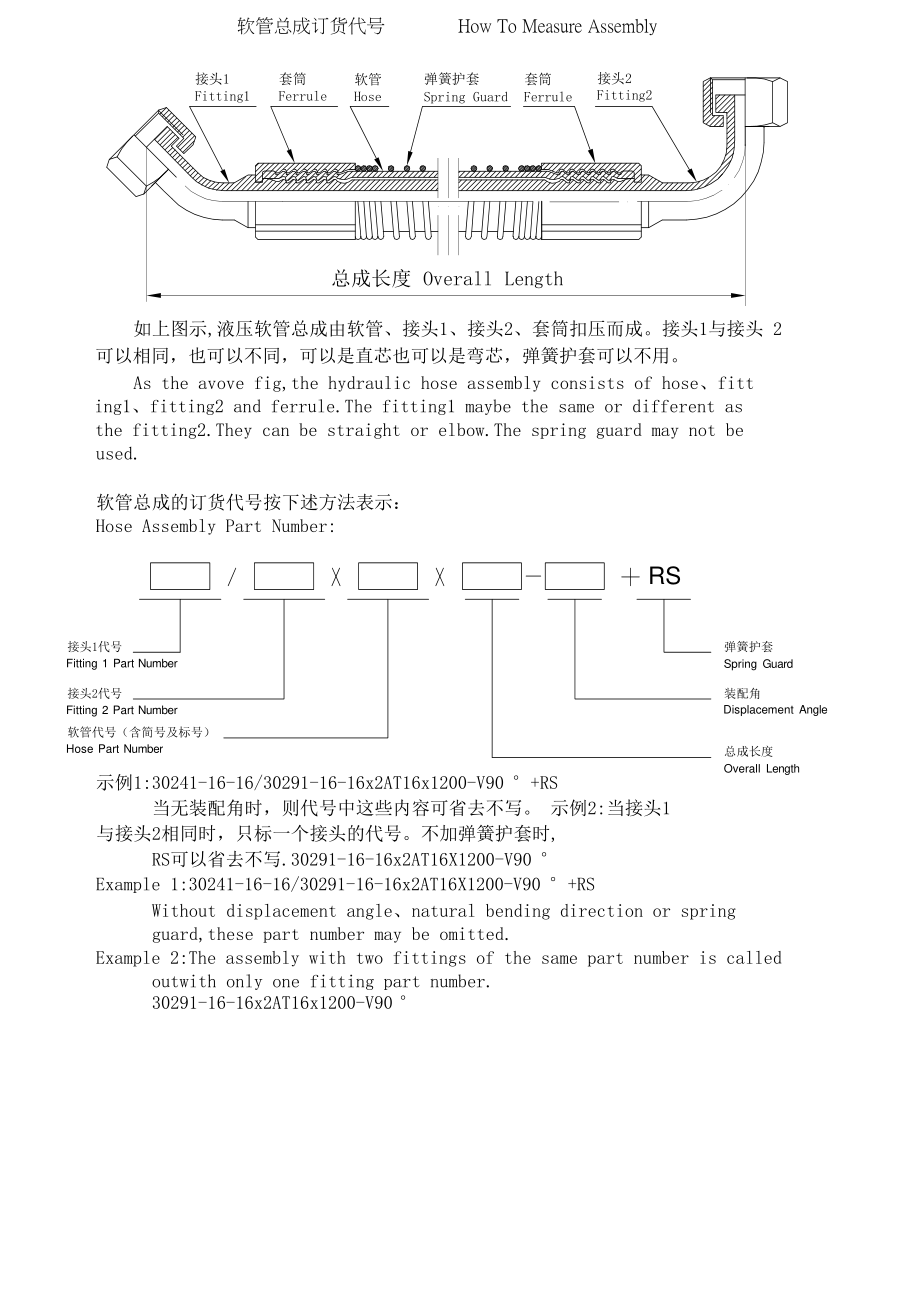

软管总成订货代号 How To Measure Assembly 如上图示,液压软管总成由软管、接头1、接头2、套筒扣压而成接头1与接头 2 可以相同，也可以不同，可以是直芯也可以是弯芯，弹簧护套可以不用 As the avove fig,the hydraulic hose assembly consists of hose、fitt ing1、fitting2 and ferrule.The fitting1 maybe the same or different as the fitting2.They can be straight or elbow.The spring guard may not be used. 软管总成的订货代号按下述方法表示： Hose Assembly Part Number: RS 接头1代号 Fitting 1 Part Number 弹簧护套 Spring Guard 接头2代号 Fitting 2 Part Number 软管代号（含简号及标号） Hose Part Number 示例1:30241-16-16/30291-16-16x2AT16x1200-V90 °+RS 当无装配角时，则代号中这些内容可省去不写。
示例2:当接头1 与接头2相同时，只标一个接头的代号不加弹簧护套时, RS可以省去不写.30291-16-16x2AT16X1200-V90 ° Example 1:30241-16-16/30291-16-16x2AT16X1200-V90 °+RS 装配角 Displacement Angle 总成长度 Overall Length Without displacement angle、natural bending direction or spring guard,these part number may be omitted. Example 2:The assembly with two fittings of the same part number is called outwith only one fitting part number. 30291-16-16x2AT16x1200-V90 ° 接头1 套筒 Fitting1 Ferrule 软管 Hose 弹簧护套套筒 Spring GuardFerrule 接头2 Fitting2 总成长度 Overall Length 软管总成长度测量 How To Measure Assembly 装配角方向 Direction Angle Of Assembly 0° 315° 0° 315° 45° 0° 315° 270° 45° 90° 0° 315° 45° 45° 270° 90° 225° 180° 135° 270° 90° 270° 315° 225° 0° 45° 180° 90° 135° 225° 180° 315° 135° 0° 45° 90° 90° 270° 270° 225° 180° 315° 135° 0° 45° 315° 225° 0° 45° 180° 135° 270° 90° 135° 0° 315° 45° 270° 90° 135° 225° 225° 180° 270° 225° 180° 180° 90° 135° 225° 180° 135° L L L L L L 1 2 软管总成装配角测量 How To Measure Displacement Angle 当总成的两端接头均为弯接头时,装配角两弯接头间有一角度关系.测量时, 把软管总成拉直,并沿直线方向看,把弯接头1置垂直向上方向,按顺时针测量弯 接头2与垂直放置的弯接头1之间的夹角,即为软管总成的装配角,用V表示.如图 所示,例当装配角α为225 °时,标记为V225. Specified only if two elbow fittings are used. To measure disp lacement angle oof a hose assembly,point one end of couping“1“to a vertical poistion upward.The angle can the be measured from the centreline of coupling“1“in aclockwise dircction to the centrelion of coupling“2“As shown: 目录 INDEX 类别 TYPE 代号 PART NO 页次 PAGE 铁氟龙管套筒 FERRULE FOR TEFLON HOSE 00TFO1 SAE 100R1AT/SAE 100R 2AT通用短套 XTC1 FERRULE FOR SAE 100R1AT/SAE 100R2AT SAE 100R1AT/EN 853 1SN 胶管套筒001102 FERRULE FOR SAE 1001AT/EN 853 1SN HOSE SAE 100R2AT/EN 853 2SN 胶管套筒 002102 FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE SAE 100RTAT/SAE 100R1AT/2AT 通用套筒 033103 FERRULE FOR SAE 100R 1AT/2AT SAE 100RTAT/SAE 100R1AT 套筒 FERRULE FOR SAE 100R 1AT 033003 SAE 100R1AT/EN 853 1SN 胶管套筒001004 FERRULE FOR CHINA 1-WIRE HOSE SAE 100R2AT/EN 853 2SN 胶管套筒002004 SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE 国产一层编织胶管套筒 FERRULE FOR CHINA 1-WIRE HOSE 01100 5 国产二层编织胶管套筒012005 FERRULE FOR CHINA 2-WIRE HOSE 国产三层胶管套筒013006 FERRULE FOR CHINA 3-WIRE HOSE R12/20-24 国产四层钢丝缠绕胶管套筒014006 FERRULE FOR R12 CHIAN 4-SPIRAL HOSE R9A/R9R、4SP、4SH/10-16、R12/06-16 胶管套筒004007 FERRULE FOR R9A/R9R/,4SP,4SH R12 HOSE DIN20023 4SH、R12/32 胶管套筒004017 FERRULE FOR DIN 20023 4SH.R12 HOSE DIN20023 4SH、R12/32 内锁式胶管套筒004058 INTERLOCK FERRULE FOR DIN 20023 4SH .R12 HOSE R13 内锁式胶管套筒006058 INTERLICK FERRULE FOR R13 STRENGTHEN HOSE SAE 100R7/R8 树脂管外套 000189 INTERLOCK FERRULE FOR DIN 20023 4SH .R13 HOSE R13 内锁式胶管加强套筒006019 FERRULE FOR SAE 100R7.R8 HOSE 部标公制外螺纹六角端面O型圈密封1021110 JB METRIC MALE O-RING SEAL 部标公制外螺纹平面带O型圈1031111 JB O-RING METRIC MALE FLAT SEAT 部标公制外螺纹平面带O型圈1031211 JB O-RING METRIC MALE FLAT SEAT FOR SPIRAL HOSE 目录 INDEX 类别 TYPE 代号 PART NO页次 PAGE 公制外螺纹74 °外锥面1071112 METRIC MALE 74 °CONE 公制外螺纹74 °外锥面缠绕管1071212 METRIC MALE 74 ° CONE FOR SPIRAL HOSE 公制外螺纹90 °外锥面 METRIC MALE 90 ° CONE 1091113 公制外螺纹90 °外锥面加长螺纹10911L13 METRIC MALE 90 °CONE LONG TYPE 公制平面外螺纹74 °1171114 JB METRIC MALE 74 °CONE SEAT 公制内螺纹球面2011115 METRIC FEMALE MULTISEAT 45°公制内螺纹球面2014115 45° METRIC FEMALE MULTISEAT 公制内螺纹球面缠绕管2011216 METRIC FEMALE MULTISEAT FOR SPIRAL HOSE 45°公制内螺纹球面缠绕管2014216 45°METRIC FEMALE MULTISEAT FOR SPIRAL HOSE 90°公制内螺纹球面2019117 90°METRIC FEMALE MULTISEAT 90°公制内螺纹球面缠绕管2019217 90°METRIC FEMALE MULTISEAT FOR SPIRAL HOSE 国标公制内螺纹平面2021118 GB METRIC FEMALE FLAT SEAT 30°国标公制内螺纹平面2023119 30°GB METRIC FEMALE FLAT SEAT 30°国标公制内螺纹平2023219 30°GB METRIC FEMALE FLAT SEAT FOR SPIRAL HOSE 45°国标公制内螺纹平面20241 20 45°GB METRIC FEMALE FLAT SEAT 90°国标公制内螺纹平面2029120 90°GB METRIC FEMALE FLAT SEAT 45°国标公制内螺纹平面2024221 45°GB METRIC FEMALE FLAT SEAT FOR SPIRAL HOSE 90°国标公制内螺纹平面2029221 90°GB METRIC FEMALE FLAT SEAT FOR SPIRAL HOSE 国标公制内螺纹74 °内锥面2071122 GB METRIC FEMALE 74 º CONE SEAT 45°国标公制内螺纹74 °内锥面2074122 45°GB METRIC FEMALE 74º CONE SEAT 国标公制内螺纹74 °内锥面2071223 GB METRIC FEMALE 74 ° CONE SEAT FOR SPIRAL HOSE 目录 类别 TYPE INDEX 代号 PART NO页次 PAGE 45°国标公制内螺纹74 °内锥面2074223 45°GB METRIC FEMALE 74º CONE SEAT FOR SPIRAL HOSE 90°国标公制内螺纹74 °内锥面2079124 90°GB METRIC FEMALE 74 ° CONE SEAT 90°国标公制内螺纹74 °内锥面2079224 90°GB METRIC FEMALE 74 °CONE SEAT FOR SPIRAL HOSE 公制内螺纹球面3011225 METRIC FEMALE MULTISEAT FOR SPIRAL HOSE 公制内螺纹球面 METRIC FEMALE MULTISEAT 3011125 45°公制内螺纹球面 45°METRIC FEMALE MULTISEAT 3014126 90°公制内螺纹球面3019126 90°METRIC FEMALE MULTISEAT 45°公制内螺纹球面3014227 45°METRIC FEMALE MULTISEAT FOR SPIRAL HOSE 90°公制内螺纹球面 90°METRIC FEMALE MULTISEAT FOR SPIRAL HOSE 301922。
