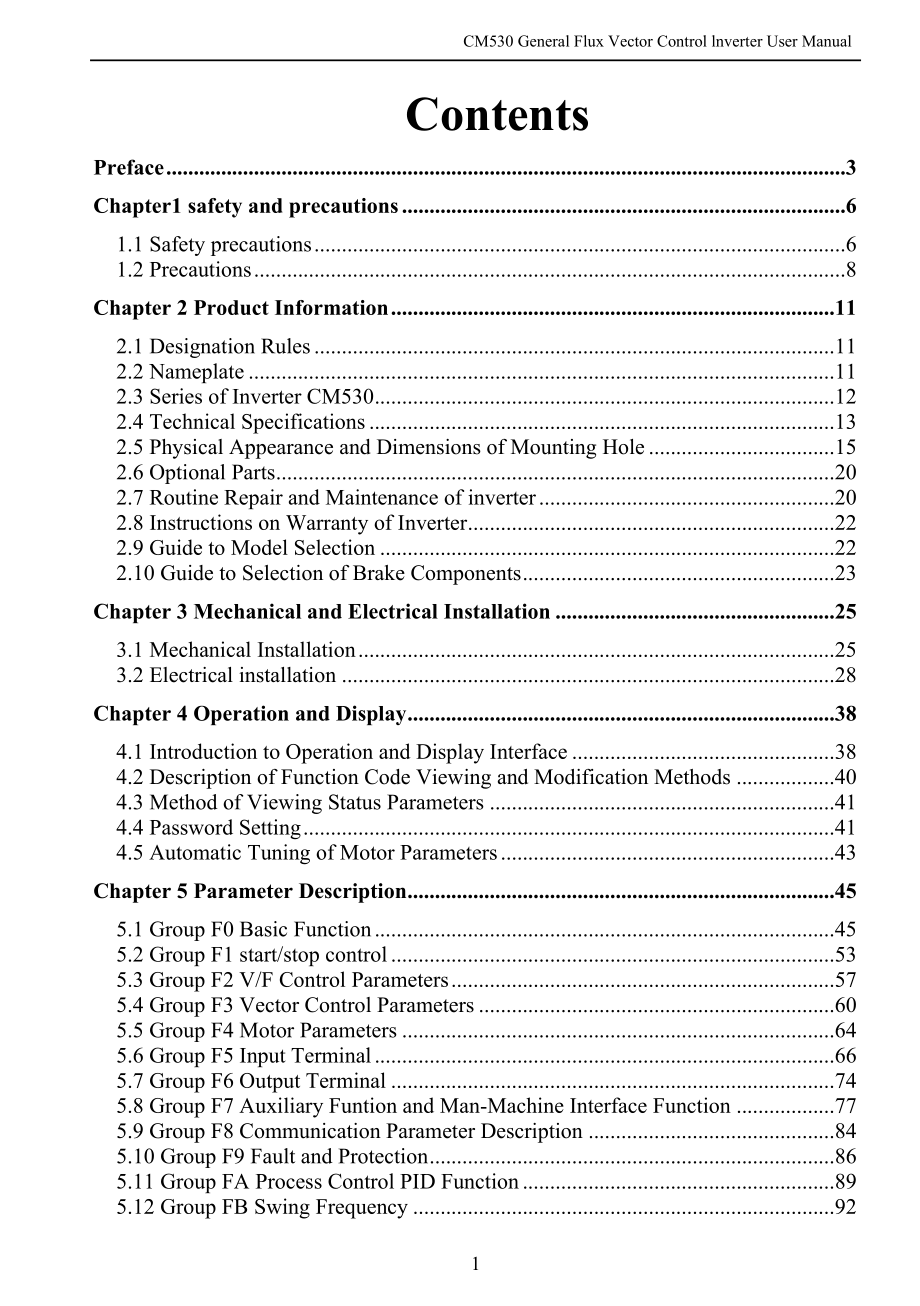

CM530 General Flux Vector Control lnverter User ManualContentsPREFACE 3CHAPTER1 SAFETY AND PRECAUTIONS 61.1 Safety precautions 61.2 Precautions 8CHAPTER 2 PRODUCT INFORMATION 112.1 Designation Rules 112.2 Nameplate 112.3 Series of Inverter CM530 122.4 Technical Specifications 132.5 Physical Appearance and Dimensions of Mounting Hole 152.6 Optional Parts 202.7 Routine Repair and Maintenance of inverter 202.8 Instructions on Warranty of Inverter 222.9 Guide to Model Selection 222.10 Guide to Selection of Brake Components 23CHAPTER 3 MECHANICAL AND ELECTRICAL INSTALLATION 253.1 Mechanical Installation 253.2 Electrical installation 28CHAPTER 4 OPERATION AND DISPLAY 384.1 Introduction to Operation and Display Interface 384.2 Description of Function Code Viewing and Modification Methods 404.3 Method of Viewing Status Parameters 414.4 Password Setting 414.5 Automatic Tuning of Motor Parameters 43CHAPTER 5 PARAMETER DESCRIPTION 455.1 Group F0 Basic Function 455.2 Group F1 start/stop control 535.3 Group F2 V/F Control Parameters 575.4 Group F3 Vector Control Parameters 605.5 Group F4 Motor Parameters 645.6 Group F5 Input Terminal 665.7 Group F6 Output Terminal 745.8 Group F7 Auxiliary Funtion and Man-Machine Interface Function 775.9 Group F8 Communication Parameter Description 845.10 Group F9 Fault and Protection 865.11 Group FA Process Control PID Function 895.12 Group FB Swing Frequency 925.13 Group FC MS Speed Function and Simple PLC Function 945.14 Group FD,FE (reserved) 995.15 Group FF Factory Parameter 99CHAPTER6 EMC(ELECTROMAGNETIC COMPATIBILITY） 1006.1 Definition 1006.2 Standard Description 1006.3 EMC Guide 101CHAPTER 7 FAULT DIAGNOSIS AND COUNTERMEASURES 1047.1 Fault Alarm and Countermeasures 1047.2 Common Fault and Resolution 116CHAPTER 8 CM530 SERIES SERIAL PORT COMMUNICATION PROTOCOL 1178.1 About Protocol 1178.2 Application mode 1178.3 Bus Structure 1178.4 Protocol specification 1188.5 Communication frame structure 1188.6 Cyclical Redundancy Check 1218.7 CMD and Status 122APPENDIX:FUNCTION PARAMETER TABLE 125101CM530 General Flux Vector Control lnverter User Manual PrefacePrefaceThank you for purchasing CM series Flux Vector Control Inverter.CM series Inverter which is a new generation of modular can flexibly satisfy customers’ individual requirements and industry demand by extension of design on the premise that meet general purpose of the customers , representing the tendency of applying in the future inverters industry.In meeting to the requirements of all kinds of complicated high precision transmission with all functions of built-in universal extended interface, power speed control, torque control ,practical process closed-loop control,simple PLC ,flexible I/O terminal, pulse frequency given ,frequency given channel and run command channel bundled,main auxiliary given control ,swing frequency control ,speed track ,encoder break monitoring,interal break unit ,28 species fault monitoring,more than 16 MS speed control,parameters copies ,etc, at the same time,it provides equipment manufacturer with an all in-one solution of high integration ,on reducing system cost and improving system reliability have a great value.We offer two sub- modules for user as options ,that is,CM530 functinal module and CM580 functinal module ,the modular design will represent the development of inverter in the future .There are different between the two modules shown in Table 1Tab.1 Difference between CM530 and CM580 funtional modulesCM580:High performance modulation magnetic flux vector control inverterCM530:General Magnetic Flux Vector Control lnverterInput/Output Interminal6×DI bidirectionalinput，2×AI，2×DO （one high speed port FM），1×AO，1×Relay,(expandable)I/O5×DI（bidirectional input non-high speed），2×AI，1×DO，1×AO，1×RelayControl mode open loop magnetic flux vectorV/Fclose loop magnetic flux vectoropen loop torqueclose loop torqueopen loop magnetic flux vector 1open loop magnetic flux vector 2V/Fopen loop torquecontrol motorAC asynchronous motorAC permanent magnetic synchronous motor (simple servo motor function available) AC asynchronous motorexpansion function of specialized industrial module availabenoneI/O expansion cardavailabenonePG cardavailabenonefixed-length controlavailabenonecommunication functionModbus(communication standard)Profibus DP(extended by the expansion card)Modbus(485 communication standard)switching function of two motor parametersavailabenonecompared with traditional voltage vector control ,current vector control gains main advantages as follow :1、start torque：0.5Hz,180% rated torque（open loop magnetic flux vector contro l ）;2、Flux-weakenig control algorithm,maximum can exceed 2 times the fundamental frequency operation of motor;3、precise speed con。
