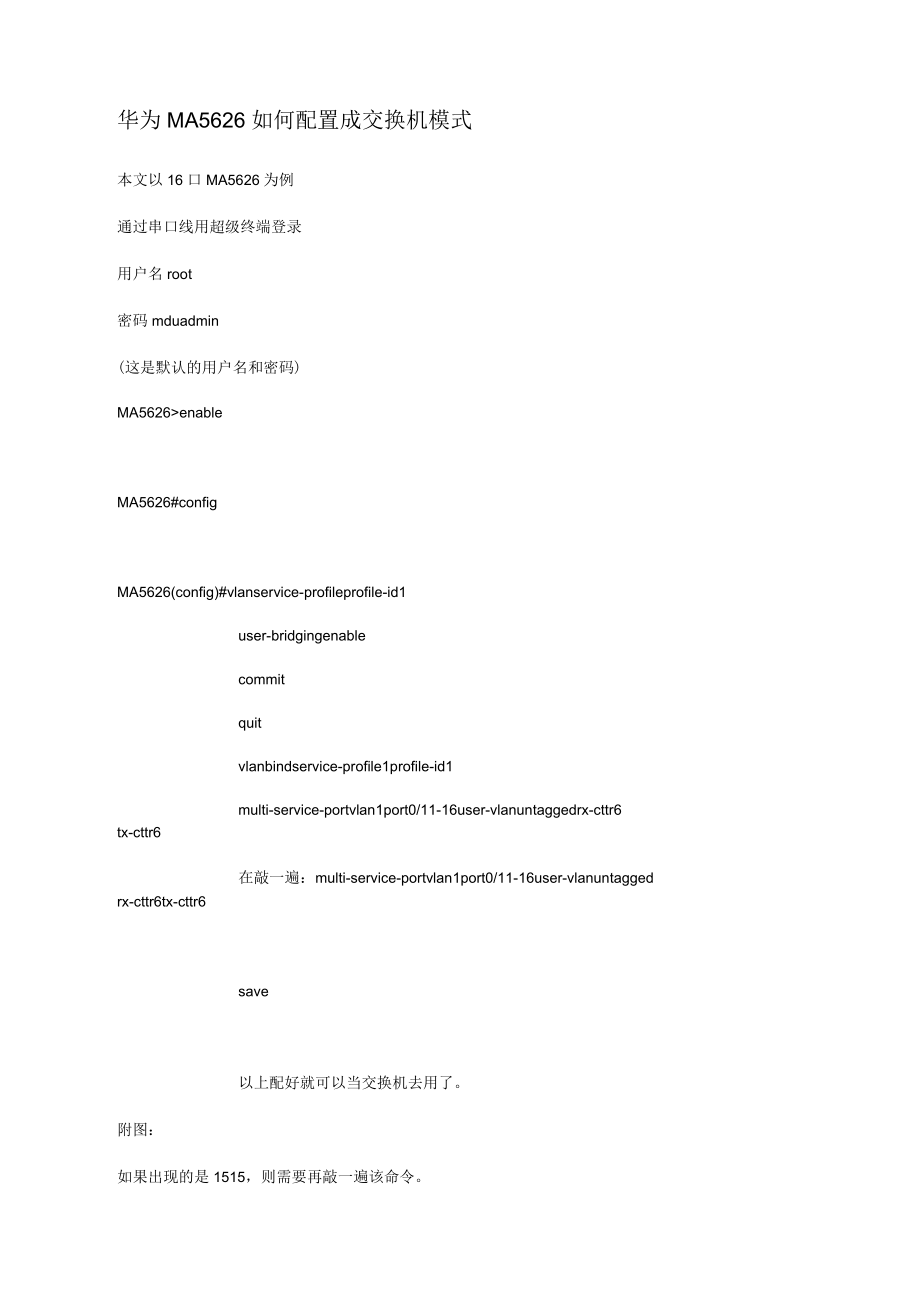

华为MA5626如何配置成交换机模式本文以16口MA5626为例通过串口线用超级终端登录用户名root密码mduadmin(这是默认的用户名和密码)MA5626>enableMA5626#configMA5626(config)#vlanservice-profileprofile-id1user-bridgingenablecommitquitvlanbindservice-profile1profile-id1multi-service-portvlan1port0/11-16user-vlanuntaggedrx-cttr6tx-cttr6在敲一遍：multi-service-portvlan1port0/11-16user-vlanuntaggedrx-cttr6tx-cttr6save以上配好就可以当交换机去用了附图：如果出现的是1515，则需要再敲一遍该命令 硬件连接方式首先连接电脑与onu,通过配置线连接图为配置线，“网线头”插入onu的CONSOLE,另一端与电脑的串口接图为onu上对应的CONSOLE口（插入“网线头”即可）电脑端操作首先打开超级终端：开始一程序一附件---通信一超级终端打开超级中断后出现如下提示点否进入如下界面名称随便写图标选择默认的即可，然后点击确定出现如下界面连接口选择COM或者COM2艮据自己的机器选择，1不行就2,点击确定,然后按照下图设置 点击确定然后到文件一属性一设置中按下图方式定要设置ASCII码按照图中行延迟和字符延迟都设置为200毫秒，然后点击确定即可在超级终端由点击回车即可由现要求输入用户名和密码.Ids-■蜃律瑞华为onu登陆用户名root密码mduadmin登陆后界面如下登陆onu后输入的命令：enable---回车eraseflashdata---回车Y---回车rebootsystem---回车Y---回车回车后等待片刻onu重启后以前所配置的数据即可全部删除查看光功率MA5626>enableMA5626#config MA5626(config)#interfacegponnni0/0/1MA5626(config-if-gponnni-0/0/1)#displayportstateF/S/P0/0/1LaserstateAUTOPortstateUpsoldered toWaveLength(nm)1310IdentifierModule/connectormotherboardGBIC/SFPfunctionisdefinedbyserialIDonlyConnectorOpticalpigtailEncodingNRZBR,Nominal(100Mbps)13Length(9um)(km)Length(50um)NotsupportLengthNotsupportLength(Copper)NotsupportCc_base0xaaCC_EXT0x7bBR,maxUnspecifiedBR,minUnspecified SFF-8472 ComplianceTBDOptionsVendorRevVendorPNVendorSNVendorOUIManufacturedVendornameTXBiascurrent(mA)SupplyVoltage(V)Temperature(C)TXpower(dBm)RXpower(dBm)8口实例MA5626>enableInvalidUnspecifiedSFU3424THPCDFIACC4L201187600000012-03-21SOURCEPHOTONICSMA5626#configMA5626(config)#vlanservice-profileprofile-id1{|profile-name}:Command:vlanservice-profileprofile-id1MA5626(config-vlan-srvprof-1)#user-bridgingenableInfo:PleaseusethecommitcommandtomakemodificationstakeeffectMA5626(config-vlan-srvprof-1)#commitMA5626(config-vlan-srvprof-1)#quitMA5626(config)#vlanbindservice-profile1profile-id1MA5626(config)#multi-service-portvlan1port0/11-8user-vlanuntaggedrx-cttr6tx-cttr6Itwilltakeseveralminutes,andconsolemaytimeout,pleaseusecommandidle-timeouttosettimelimitAreyousuretocreateservicevirtualport(s)?(y/n)[n]:yThenumberoftotalboardinthisoperation:1Thenumberoftotalservicevirtualportinthisoperation:8Creatingstart...Creatingend:Thenumberoftotalservicevirtualportwhichneedbecreated:8Thenumberoftotalservicevirtualportwhichhavebeencreated:8MA5626(config)#multi-service-portvlan1port0/11-8user-vlanuntaggedrx-cttr6tx-cttr6Itwilltakeseveralminutes,andconsolemaytimeout,pleaseusecommandidle-timeouttosettimelimitAreyousuretocreateservicevirtualport(s)?(y/n)[n]:yThenumberoftotalboardinthisoperation:1Thenumberoftotalservicevirtualportinthisoperation:8Creatingstart...Creatingend:Thenumberoftotalservicevirtualportwhichneedbecreated:8Thenumberoftotalservicevirtualportwhichhavebeencreated:0MA5626(config)#savePO助能数字光模块版的光口查询光功率MA5626(config-if-eth-0/0)#displayport?CommandofethMode:ddm-infoDisplayddminformationofopticalmoduleoptic-power-thresholdDisplayTXopticalpowerthresholdopticstateDisplayinformationofopticalmodulestateDisplayportstatestatisticsDisplayportstatisticstrafficDisplayporttrafficMA5626(config-if-eth-0/0)#displayportopticstate{all|portid<1,2>}:Command:displayportopticstate%Incompletecommand,theerrorlocatesat'A'MA5626(config-if-eth-0/0)#displayportopticstateCommandofethMode:allAllportsportid<1,2>PortIDMA5626(config-if-eth-0/0)#displayportopticstateallPortbit9umlength50umlengthlengthcopperlengthtyperatesupportedsupportedsupportedsupported(100M/s)(km)(10m)(10m)(m)12211055550M1000BASE_CXMA5626(config-if-eth-0/0)#displayportopticstateallPortbit9umlength50umlengthlengthcopperlengthtyperatesupportedsupportedsupportedsupported(100M/s)(km)(10m)(10m)(m)1211055550M1000BASE_CX2MA5626(config-if-eth-0/0)#quitMA5626(config)#displayboard0SlotID BoardName StatusSubType0SubType1Online/Offline0H822EPUBActive_normalUP2A1H821EPFANormal2MA5626(config)#interfaceeth0/0MA5626(config-if-eth-0/0)#displayportopticstateallPortbit9umlength50umlengthlengthcopperlengthtyperatesupportedsupportedsupportedsupported(100M/s)(km)(10m)(10m)(m)551211055M1000BASE_CX2MA5626(config-if-eth-0/0)#displayportstateallPortPortOpticMDISpeedDuplexFlow-ActiveLinkTypeStatus(Mbps)CtrlState1GEnormal-auto_1000auto_fulloffactiveonline2GEabsence-autoautooffactiveofflineNote:Fora1000M,electricalportinthefull-duplexmode,settingMDItoanyvalueisinvalidMA5626(config-if-eth-0/0)#displayportddm-infoallA%Parametererror,theerrorlocatesat'A'MA5626(config-if-eth-0/0)#displayportddm-info{portid<1,2>}:Command:displayportddm-infoA%Incompletecommand,theerrorlocatesat'A'MA5626(config-if-eth-0/0)#displayportddm-info1Temperature(C):Supplyvoltage(V):TXbiasc。
