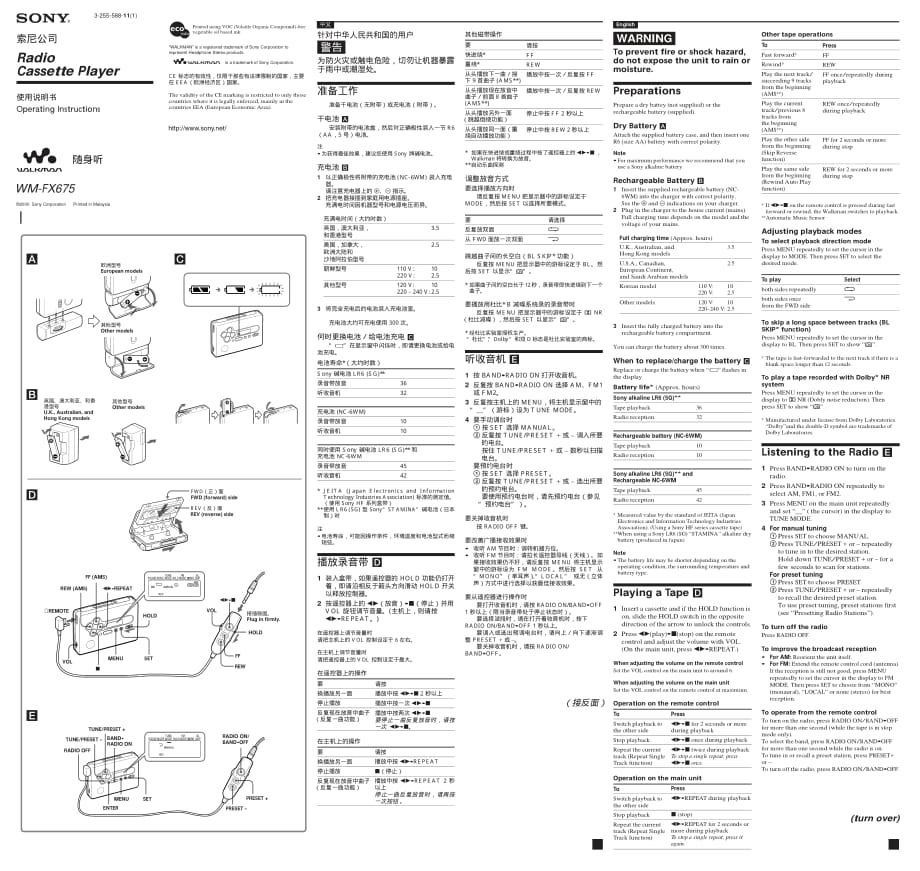

3-255-588-11(1) Radio Cassette Player ©2000 Sony CorporationPrinted in Malaysia 使用说明书 Operating Instructions Printed using VOC (Volatile Organic Compound)-free vegetable oil based ink. English “WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo products. is a trademark of Sony Corporation. CE 标志的有效性，仅限于那些有法律限制的国家，主要 在 EEA（欧洲经济区）国家 The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area). WM-FX675 B C 英国、澳大利亚、和香 港型号 U.K., Australian, and Hong Kong models 其他型号 Other models WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. Preparations Prepare a dry battey (not supplied) or the rechargeable battery (supplied). Dry Battery A Attach the supplied battery case, and then insert one R6 (size AA) battery with correct polarity. Note •For maximum performance we recommend that you use a Sony alkaline battery. Rechargeable Battery B 1Insert the supplied rechargeable battery (NC- 6WM) into the charger with correct polarity. See the 3 and # indications on your charger. 2Plug in the charger to the house current (mains). Full charging time depends on the model and the voltage of your mains. Full charging time (Approx. hours) U.K., Australian, and3.5 Hong Kong models U.S.A., Canadian,2.5 European Continent, and Saudi Arabian models Korean model110 V:10 220 V:2.5 Other models120 V:10 220–240 V: 2.5 3Insert the fully charged battery into the rechargeable battery compartment. You can charge the battery about 300 times. When to replace/charge the battery C Replace or charge the battery when “e” flashes in the display. Battery life* (Approx. hours) Sony alkaline LR6 (SG)** Tape playback36 Radio reception32 Rechargeable battery (NC-6WM) Tape playback10 Radio reception10 Sony alkaline LR6 (SG)** and Rechargeable NC-6WM Tape playback45 Radio reception42 * Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association). (Using a Sony HF series cassette tape) **When using a Sony LR6 (SG) “STAMINA” alkaline dry battery (produced in Japan) Note •The battery life may be shorter depending on the operating condition, the surrounding temperature and battery type. Playing a Tape D 1 Insert a cassette and if the HOLD function is on, slide the HOLD switch in the opposite direction of the arrow to unlock the controls. 2 Press Y(play)•x(stop) on the remote control and adjust the volume with VOL. (On the main unit, press Y•REPEAT.) When adjusting the volume on the remote control Set the VOL control on the main unit to around 6. When adjusting the volume on the main unit Set the VOL control on the remote control at maximum. Operation on the remote control To Switch playback to the other side Stop playback Repeat the current track (Repeat Single Track function) Operation on the main unit To Switch playback to the other side Stop playback Repeat the current track (Repeat Single Track function) Other tape operations To Fast forward* Rewind* Play the next track/ succeeding 9 tracks from the beginning (AMS**) Play the current track/previous 8 tracks from the beginning (AMS**) Play the other side from the beginning (Skip Reverse function) Play the same side from the beginning (Rewind Auto Play function) * If Y•x on the remote control is pressed during fast forward or rewind, the Walkman switches to playback. **Automatic Music Sensor Adjusting playback modes To select playback direction mode Press MENU repeatedly to set the cursor in the display to MODE. Then press SET to select the desired mode. To playSelect both sides repeatedlys both sides onced from the FWD side To skip a long space between tracks (BL SKIP* function) Press MENU repeatedly to set the cursor in the display to BL. Then press SET to show “”. * The tape is fast-forwarded to the next track if there is a blank space longer than 12 seconds. To play a tape recorded with Dolby* NR system Press MENU repeatedly to set the cursor in the display to ; NR (Dobly noise reduction). Then press SET to show “”. * Manufactured under license from Dolby Laboratories. “Dolby”and the double-D symbol are trademarks of Dolby Laboratories. Listening to the Radio E 1 Press BAND•RADIO ON to turn on the radio. 2 Press BAND•RADIO ON repeatedly to select AM, FM1, or FM2. 3 Press MENU on the main unit repeatedly and set “__” ( the cursor) in the display to TUNE MODE. 4 For manual tuning 1 Press SET to choose MANUAL. 2 Press TUNE/PRESET + or – repeatedly to tune in to the desired station. Hold down TUNE/PRESET + or – for a few seconds to scan for stations. For preset tuning 1 Press SET to choose PRESET. 2 Press TUNE/PRESET + or – repeatedly to recall the desired preset station. To use preset tuning, preset stations first (see “Presetting Radio Stations”). To turn off the radio Press RADIO OFF. To improve the broadcast reception •For AM: Reorient the unit itself. •For FM: Extend the remote control cord (antenna).。
