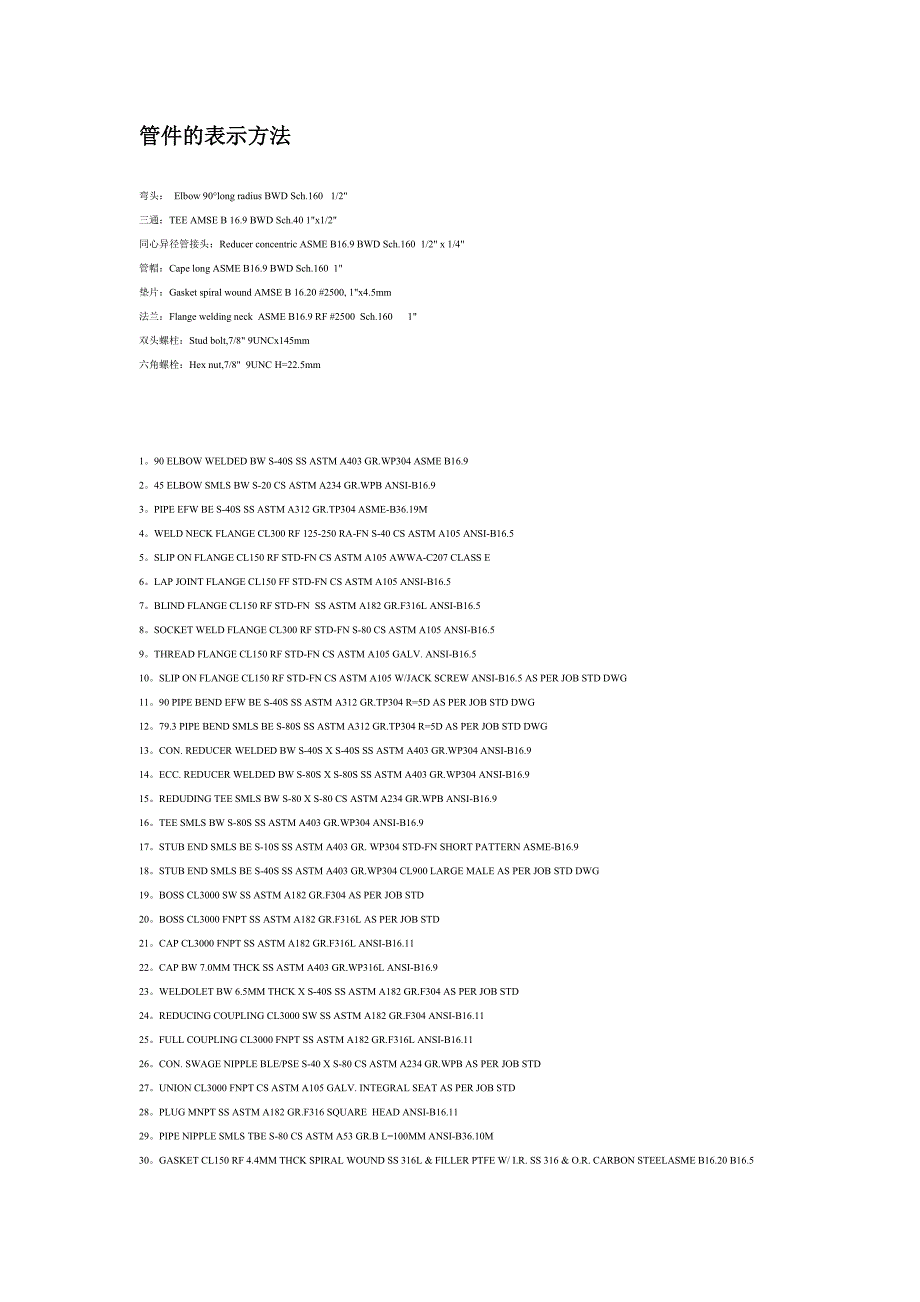

管件的表示方法管件的表示方法弯头： Elbow 90°long radius BWD Sch.160 1/2“三通：TEE AMSE B 16.9 BWD Sch.40 1“x1/2“同心异径管接头：Reducer concentric ASME B16.9 BWD Sch.160 1/2“ x 1/4“管帽：Cape long ASME B16.9 BWD Sch.160 1“垫片：Gasket spiral wound AMSE B 16.20 #2500, 1“x4.5mm 法兰：Flange welding neck ASME B16.9 RF #2500 Sch.160 1“双头螺柱：Stud bolt,7/8“ 9UNCx145mm六角螺栓：Hex nut,7/8“ 9UNC H=22.5mm190 ELBOW WELDED BW S-40S SS ASTM A403 GR.WP304 ASME B16.9245 ELBOW SMLS BW S-20 CS ASTM A234 GR.WPB ANSI-B16.93PIPE EFW BE S-40S SS ASTM A312 GR.TP304 ASME-B36.19M4。
WELD NECK FLANGE CL300 RF 125-250 RA-FN S-40 CS ASTM A105 ANSI-B16.55SLIP ON FLANGE CL150 RF STD-FN CS ASTM A105 AWWA-C207 CLASS E6LAP JOINT FLANGE CL150 FF STD-FN CS ASTM A105 ANSI-B16.57BLIND FLANGE CL150 RF STD-FN SS ASTM A182 GR.F316L ANSI-B16.58SOCKET WELD FLANGE CL300 RF STD-FN S-80 CS ASTM A105 ANSI-B16.59THREAD FLANGE CL150 RF STD-FN CS ASTM A105 GALV. ANSI-B16.510SLIP ON FLANGE CL150 RF STD-FN CS ASTM A105 W/JACK SCREW ANSI-B16.5 AS PER JOB STD DWG1190 PIPE BEND EFW BE S-40S SS ASTM A312 GR.TP304 R=5D AS PER JOB STD DWG12。
79.3 PIPE BEND SMLS BE S-80S SS ASTM A312 GR.TP304 R=5D AS PER JOB STD DWG13CON. REDUCER WELDED BW S-40S X S-40S SS ASTM A403 GR.WP304 ANSI-B16.914ECC. REDUCER WELDED BW S-80S X S-80S SS ASTM A403 GR.WP304 ANSI-B16.915REDUDING TEE SMLS BW S-80 X S-80 CS ASTM A234 GR.WPB ANSI-B16.916TEE SMLS BW S-80S SS ASTM A403 GR.WP304 ANSI-B16.917STUB END SMLS BE S-10S SS ASTM A403 GR. WP304 STD-FN SHORT PATTERN ASME-B16.918STUB END SMLS BE S-40S SS ASTM A403 GR.WP304 CL900 LARGE MALE AS PER JOB STD DWG19BOSS CL3000 SW SS ASTM A182 GR.F304 AS PER JOB STD20。
BOSS CL3000 FNPT SS ASTM A182 GR.F316L AS PER JOB STD21CAP CL3000 FNPT SS ASTM A182 GR.F316L ANSI-B16.1122CAP BW 7.0MM THCK SS ASTM A403 GR.WP316L ANSI-B16.923WELDOLET BW 6.5MM THCK X S-40S SS ASTM A182 GR.F304 AS PER JOB STD24REDUCING COUPLING CL3000 SW SS ASTM A182 GR.F304 ANSI-B16.1125FULL COUPLING CL3000 FNPT SS ASTM A182 GR.F316L ANSI-B16.1126CON. SWAGE NIPPLE BLE/PSE S-40 X S-80 CS ASTM A234 GR.WPB AS PER JOB STD27UNION CL3000 FNPT CS ASTM A105 GALV. INTEGRAL SEAT AS PER JOB STD28PLUG MNPT SS ASTM A182 GR.F316 SQUARE HEAD ANSI-B16.1129。
PIPE NIPPLE SMLS TBE S-80 CS ASTM A53 GR.B L=100MM ANSI-B36.10M30GASKET CL150 RF 4.4MM THCK SPIRAL WOUND SS 316L & FILLER PTFE W/ I.R. SS 316 & O.R. CARBON STEELASME B16.20 B16.531BOLT & NUT 10-UNC STUD AS ASTM A193 GR.B7 WITH TWO HEAVY HEX NUTS ASTM A194 GR.2H32BOLT & NUT UNC STUD AS ASTM A193 GR.B7 WITH TWO HEAVY HEX NUTS ASTM A194 GR.2H ANSI B1.1 B18.2.233GASKET CL150 RF 1.5MM THCK RING TYPE NON-ASBESTOS SHEET ASME B16.21 B16.534GASKET CL150 RF 1.5MM THCK RING TYPE PTFE ASME B16.20 B16.5 35。
BALL VALVE 150# RF SS A351-CF8M BODY SS 316 TR REINF PTFE SEATS & SEALS REGULAR PORT WR OP MSS-SP-72 ASME B16.5 PTFE GASKET & PACKING36GLOBE VALVE 800# SW CS A105 BODY 13CR TR STLD SEAT SOILD WG OS&Y BB API-602 SP-WD 304/GRAP.GASKET GRAP.PACKING37GATE VALVE 800# SW CS A105 BODY 13CR TR STLD SEAT SOILD WG OS&Y BB API-602 SP-WD 304/GRAP.GASKET GRAP.PACKING38CHECK VALVE, CL150, WAFER TYPE, SS ASTM A351 GR.CF8 BODY SS 304 TRIM API TR#2, DUAL PLATE, API-594 ASME-B16.5, GRAPHITE PACKING39GLOBE VALVE, CL150, RF, SS ASTM A351 GR.CF8 BODY SS304 TRIM API TR #2, LOOSE DISC OS&Y BB, API-600 ASME-B16.5, SP-WD 316L/PTFE GASKET PTFE-FILLED CARBON FIBER PACKING40。
GATE VALVE, CL150, RF, CS ASTM A216 GR.WCB BODY 13CR TRIM, FLEXIBLE WEDGE OS&Y BB, API-600 ASME-B16.5,SP-WD 304/GRAP. GASKET GRAP. PACKING。
