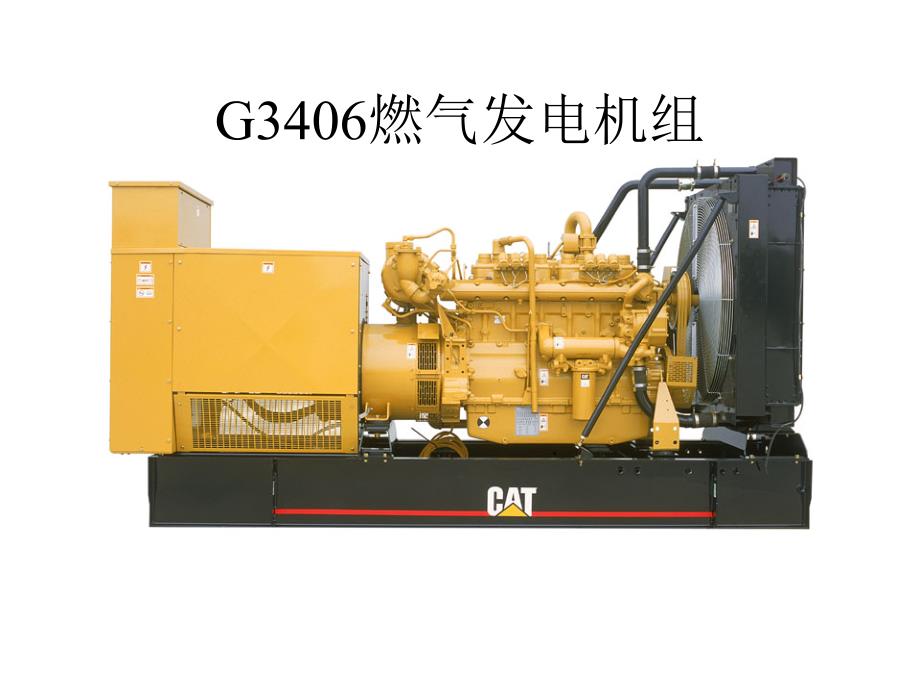

G3406燃气发电机组,G3408燃气发动机,G3412燃气发电机组,G3512燃气发电机组,G3516燃气发电机组,G3520燃气发电机组,,G3406125EKW每台机组供货范围及技术规范ENGINEMODEL发动机型号:G3406ENGINECONFIGURATIONANDCYLINDERNO.发动机汽缸排列及缸数：直列6缸ENGINETYPE发动机类型：4STROKE，SPARKIGNITION四冲程，火花点火式BORE缸径（毫米）：137STROKE冲程（毫米）：164MEANPISTONSPEED活塞平均速度：8.2米/秒DISPLACEMENT（排气量）：14.6升COMPRESSIONRATIO压缩比：10.3:1ASPIRATION吸气方式：NATURALLYASPIRATION自然进气GENERATORMODE发电机型号：SR4GENERATORTYPE：3PHASEYCONNECTION-SEL-EXCITEDBRUSHLESS三相Y型接法-自激无刷式CONSTRUCTION结构：SINGLEBEARING单轴承FRAMENO机架号：447GENSETSPEED机组转速：1500RPMTotalweight总重量：4091公斤Dimension(LxWxHmm)长X宽X高：4071x1307x2132DETAILTECHNICALINFORMATIONPROVIDEDINCHAPTEROFTECHNICALDATA,EMCPII+监控保护报警盘,卡特彼勒燃气发电机组,1发电机全部为H级绝缘等级。
2发动机转速为1500RPM，稳定性及可靠性高于3000RPM发电机组3.燃气采用低压进气（最小压力10KPA），安全可靠（特别在市区）卡特彼勒燃气发电机组,1采用自然吸气，燃烧温度及燃烧压力低，性能可靠，大修期长，加速性能好（特别适用备用机组突加突卸）2按持续功率标定，可在保养周期内实现连续满载运行3由于采用自然吸气，燃烧温度及燃烧压力低，所以，当燃气质量非常差时仍然能满载运行，发动机不会发生爆震甲烷可到30）,卡特彼勒燃气发电机组,1发动机点火采用闭环控制，当有爆震发生时，会自动推迟点火集中控制系统可对发动机及发电机进行各种保护保护，控制，数字化显示发电机及发动机的各项参数卡特彼勒燃气发电机组,1全国各大城市都有服务维修网络及备品备件供应，各个代理商都有大量受过专业培训的工程师及大修车间2有技术支持工程师，可随时给用户做技术支持及培训G3300andG3400EngineMaintenanceIntervalSchedule(General)-StandbyGeneratorSetEnginesG3300&G3400发电机组用发动机保养时间表（通用）---适用于应急发电机组,EveryWeek每周工作,EveryWeek每周工作AirStartingMotorLubricatorOilLevel-Check检查气起动马达润滑油位AirTankMoistureandSediment-Drain空气储气罐排污AutomaticStart/Stop-Inspect机组自动起/停检查BatteryCharger-Check电池充电器检查BatteryElectrolyteLevel-Check电瓶液检查ControlPanel-Inspect控制盘检查CoolingSystemCoolantLevel-Check冷却液位检查EngineAirCleanerServiceIndicator-Inspect更换空气滤芯指示器检查EngineAirPrecleaner-Clean清理发动机初级滤芯EngineOilLevel-Check发动机油位检查InstrumentPanel-Inspect仪表盘检查JacketWaterHeater-Check缸套水加热器检查Walk-AroundInspection周围检查,,Every250ServiceHoursor1Year每250或一年小时检查EngineOilandFilter-Change更换机油滤芯,ActuatorControlLinkage-Lubricate执行器拉杆打黄油AftercoolerCore-Clean/Test清理中冷器AirStartingMotorLubricatorBowl-Clean清理气起动马达润滑油杯Alternator-Inspect检查充电发电机AlternatorandFanBelts-Inspect/Adjust/Replace充电发电机皮带检查/调整/更换CarburetorAir/FuelRatio-Check/Adjust燃气/空气混合器检查/调整CoolingSystemCoolantAnalysis(LevelII)-Obtain冷却液分析检查,每年工作,,CoolingSystemSupplementalCoolantAdditive(SCA)-Test/Add冷却系统添加剂检测/添加CrankcaseBlowby-Measure/Record曲轴箱呼吸器检测/记录CrankshaftVibrationDamper-Inspect曲轴扭振减振器检查CylinderPressure-Measure/Record汽缸压力检查Engine-Clean发动机清洁EngineAirCleanerElement-Check/Replace空气滤芯检查/更换,每年工作,EngineCrankcaseBreather-Clean曲轴箱呼吸器清理EngineMounts-Check检查发动机安装支撑EngineOilSample-Obtain机油油样分析EnginePerformance-Test测试发动机性能EngineProtectiveDevices-Check检查发动机保护系统EngineSpeed/TimingSensor-Clean/Inspect检查/清理发动机速度传感器EngineValveLash-Inspect/Adjust气门间隙检查/调整EngineValveRotators-Inspect气门摇臂检查GasPressureRegulator-Check燃气压力调节阀检查GasPressureRegulatorCondensation-Drain燃气压力调节阀排污,,HosesandClamps-Inspect/Replace管路及管卡检查/更换IgnitionSystemSparkPlugs-Check/Adjust/Replace火花塞检查/调节/更换IgnitionSystemTiming-Check/Adjust点火时间检查/调整InletAirSystem-Inspect空气进气系统检查Radiator-Clean清洁散热水箱SpeedSensor-Clean/Inspect速度传感器清理/检查StartingMotor-Inspect起动马达检查Turbocharger-Inspect涡轮增压器检查WaterPump-Inspect水泵检查,Every3Years每三年,Batteries-Replace更换电瓶Belts-Replace更换皮带CoolingSystemCoolant(DEAC)-Change更换防冬液ExhaustBypass-Inspect排气旁通阀检查ExhaustPiping-Inspect排气管检查Governor-Inspect调速器检查HosesandClamps-Replace更换软管及管卡IgnitionSystemSparkPlugWires-Replace点火系统高压线更换IgnitionSystemTransformerResistance-Test点火系统点火线圈电阻值检查WaterTemperatureRegulator-Replace更换缸套水节温器,天然气甲烷值的计算,CATERPILLARMETHANENUMBERCALCULATIONPROGRAMVersion5.00卡特彼勒甲烷值计算程序（靖边天然气）METHANECH4:96.226HEXANEC6H14:0.051ETHANEC2H6:1.770HEPTANEC7H16:0.038ETHYLENEC2H4:0.000OCTANEC8H18:0.000PROPANEC3H8:0.300NONANEC9H20:0.000PROPYLENEC3H6:0.000CARBONMONOXIDECO:0.000ISOBUTANEISOC4H10:0.062CARBONDIOXIDECO2:0.473NORBUTANENORC4H10:0.075HYDROGENH2:0.000ISOPENTANEISOC5H12:0.020OXYGENO2:0.000NORPENTANENORC5H12:0.016NITROGENN2:0.967NEOPENTANENEOC5H12:0.000HELIUMHE:0.000HYDROGENSULFIDEH2S:0.002TOTAL(Volume%):100.000CATERPILLARMETHANENUMBER:卡特彼勒甲烷值84.7COMPRESSIBILITYFACTOR:可压缩系数0.998STOICHA/FRATIO(Vol/Vol):理论空燃比（体积比）9.636STOICHA/FRATIO(Mass/Mass):理论空燃比（质量比）16.642SPECIFICGRAVITY(RELTOAIR):相对空气的比重0.579RELATIVEPOWERCAPABILITYTO相对标准天然气的输出功率905BTU/FT3(35.64MJ/NM3)FUEL:100%BTU/FT3MJ/NM3LOWERHEATINGVALUE:低热值92236.32HIGHERHEATINGVALUE:高热值102640.40,。
