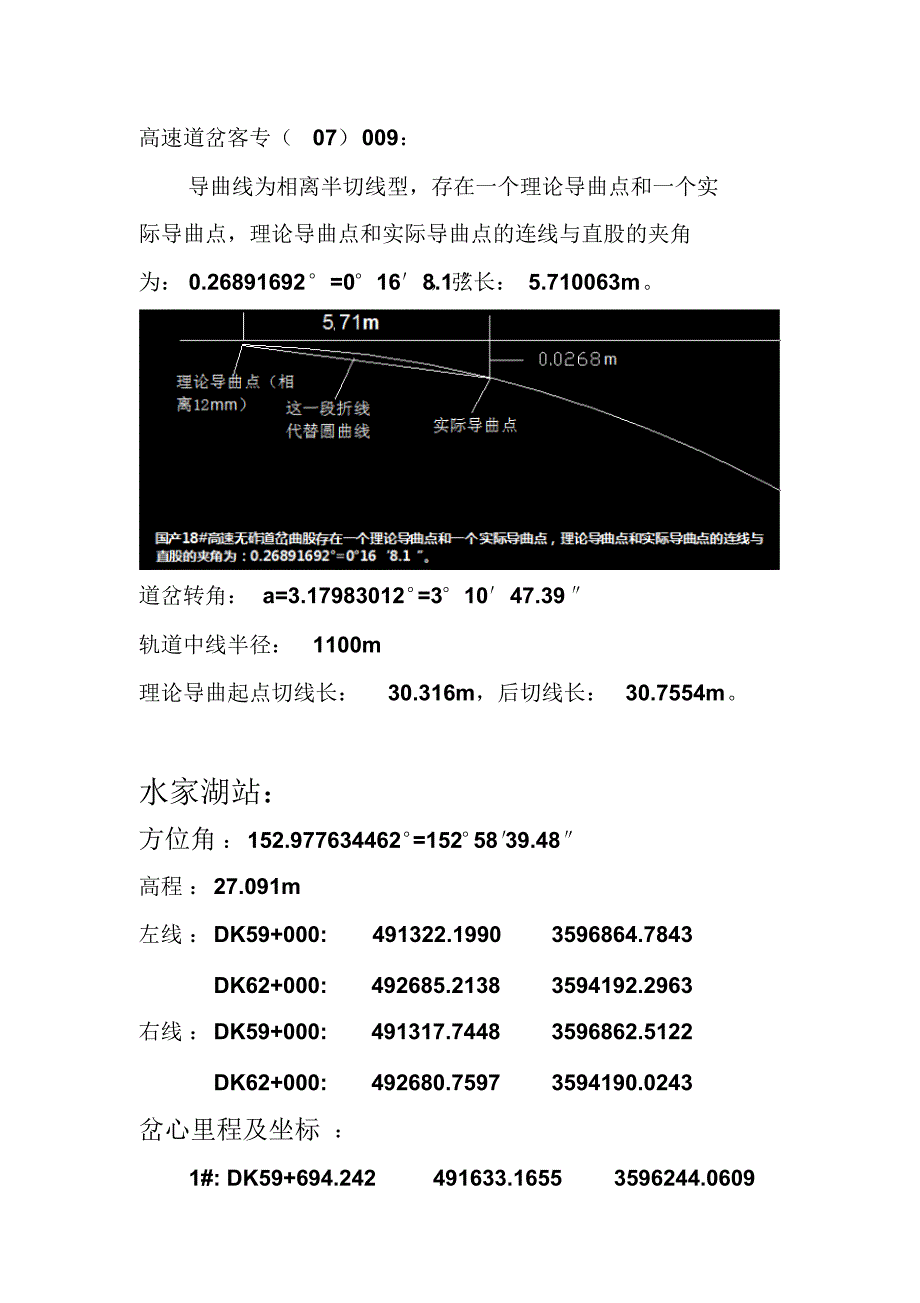

高速道岔客专（07）009：导曲线为相离半切线型，存在一个理论导曲点和一个实际导曲点，理论导曲点和实际导曲点的连线与直股的夹角为： 0.26891692°=0°16′8.1 ″，弦长： 5.710063m道岔转角： a=3.17983012° =3°10′47.39″轨道中线半径：1100m 理论导曲起点切线长：30.316m，后切线长： 30.7554m水家湖站：方位角：152.977634462° =152° 58′ 39.48″高程 ：27.091m 左线 ：DK59+000: 491322.1990 3596864.7843 DK62+000: 492685.2138 3594192.2963 右线 ：DK59+000: 491317.7448 3596862.5122 DK62+000: 492680.7597 3594190.0243 岔心里程及坐标：1#: DK59+694.242 491633.1655 3596244.0609 2#: DK60+925.76 492192.6913 3595146.9887 3#: DK59+784.242 491678.5102 3596166.1583 4#: DK60+835.76 492156.2550 3595229.4353 5#: DK59+897.7 491725.6043 3596062.8146 6#: DK60+722.3 492104.7058 3595330.5088 7#: DK59+897.7 491730.0585 3596065.0866 8#: DK60+722.3 492100.2516 3595328.2368 淮南东站：方位角：214.124092065° =214° 07′ 26.73″高程：26.601左线：DK40+000: 490703.2928 3614437.9285 DK42+000 ：489581.3185 3612782.2794 右线：DK40+000 ：490699.1537 3614440.7329 DK42+000 ：489577.1794 3612785.0839 岔心里程及坐标：1#: DK40+259.18 490553.7571 3614226.1765 2#: DK41+617.38 489791.8243 3613101.82523#: DK40+349.18 490507.4073 3614148.8682 4#: DK41+527.38 489846.4523 3613173.52545#: DK40+496.64 490424.6842 3614026.7972 6#: DK41+377.87 489930.3255 3613297.2934 7#: DK40+496.64 490420.5451 3614029.60128#: DK41+260.87 490001.3418 3613390.5016 10#: DK41+377.87 489926.1864 3613300.0974。
