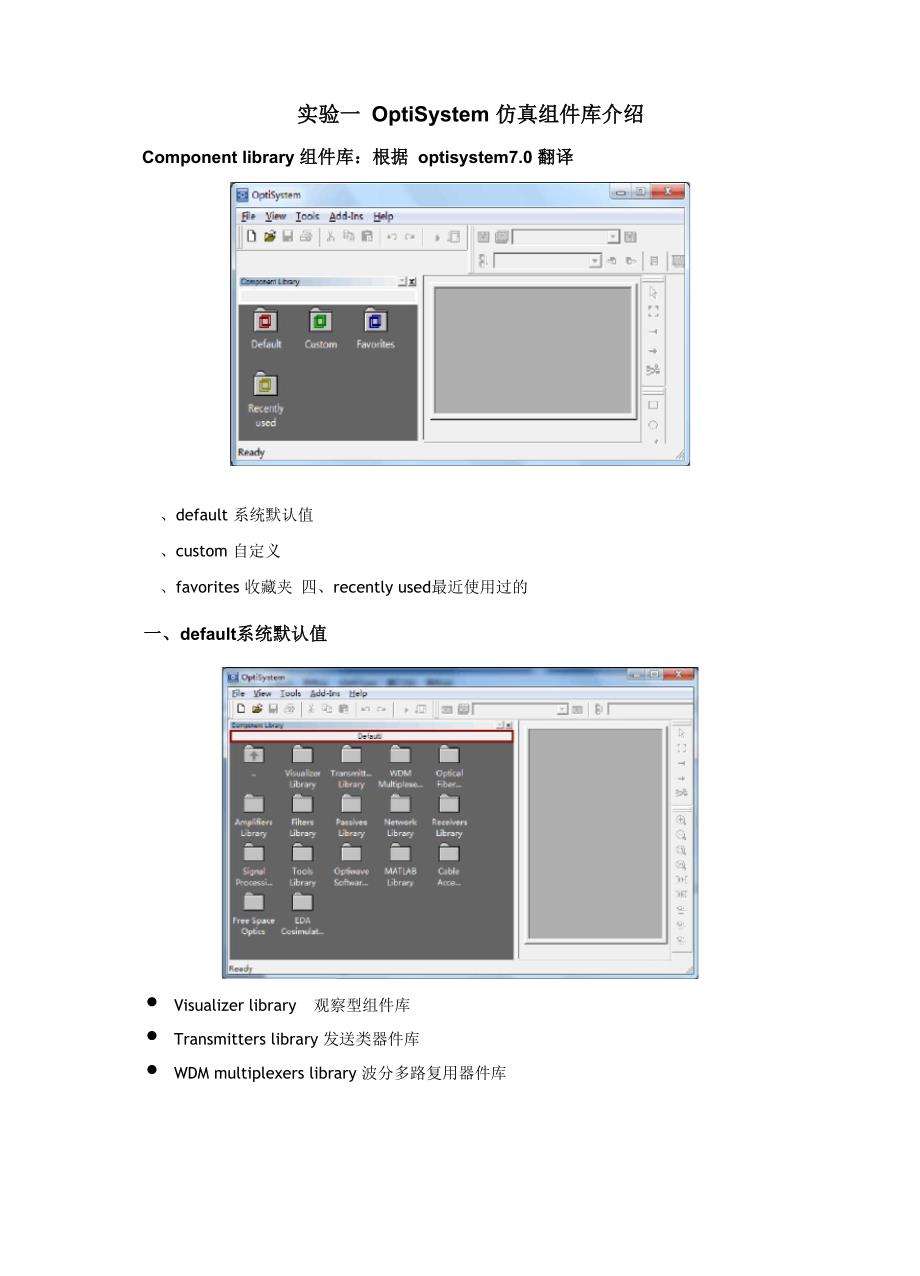

实验一 OptiSystem 仿真组件库介绍Component library 组件库：根据 optisystem7.0 翻译、default 系统默认值、custom 自定义、favorites 收藏夹 四、recently used最近使用过的一、default系统默认值• Visualizer library 观察型组件库• Transmitters library 发送类器件库• WDM multiplexers library 波分多路复用器件库• Optical fibers library 光纤器件库• Amplifiers library 放大器组件库• Filters library 滤波器器件库• Passives library 无源器件库• Network library 网状器件库• Receivers library 接收端器件库• Signal processing library 信号处理器件库• Tools library 工具类器件库• Optiwave software tools 光波类软件库• Matlab library Matlab 组件库• Cable access library 有线接收器件库• Free space optics 自由空间光• EDA cosimulation library 电子设计自动化仿真组件库（1）Visualizer library 观察型组件库Optical 光学类Test sets： Optical filter analyzer 光学滤波式分析器（测试设备）Photonic a也parameter analyzer光电子全参量分析器Differential mode delay analyzer 差模延迟分析器Optical spectrum analyzer 光谱仪Optical time domain visualizer 光时域观察仪Optical power meter 光功率计WDM analyzer 波分复用分析仪Dual port WDM analyzer 双端口波分复用分析仪Polarization analyzer 检偏振器Polarization meter 偏振仪表Spatial visualizer 空间立体观察器Encircled flux analyzer 环型通量分析仪Electrical 电学类Test sets Electrical filter analyzer 电子类滤波器分析 S parameter extractor S参量提取器Oscilloscops visualizer 示波器Eye diagram analyzer 眼图Electrical power meter visualizer 功率表 用表Electrical carrier analyzer 载波分析(2) Transmitters library 发送机组件Optical sources 光源CW laser 连续波激光器Laser measured 激光测量White light source 白光Pump laser array 激光泵浦阵列CW laser measured 连续波激光测量RF spectrum analyzer 射频频谱分析仪BER analyzer 误码率分析仪Electrical constellation visualizer 万Laser rate equations 速率方程LED 发光二极管Pump laser 激光泵浦CW laser array 连续激光阵列Directly modulated laser measured 调制激光直接测量CW laser array ES 连续波激光回声探测 VCSEL laser 垂直端面发射激光器Controlled pump laser 可控泵浦激光 Spatial CW laser 空间连续波激光器Spatial laser rate equations 空间激光速率方程组 Spatial LED 空间发光二级管Spatial VCSEL 空间垂直端面发射激光器Spatiotemporal VCSEL 空域/时域垂直端面发射激光器Bit sequence generators 码元产生器Pseudo-random bit sequence generator 伪随机码发生器User defined bit sequence generator 用户自定义码发生器Pulse generators 脉冲发生器Electrical :RZ pulse generator 归零脉冲发生器NRZ pulse generator 非归零脉冲发生器Gaussian pulse generator 高斯脉冲发生器Hyperbolic-secant pulse generator 双曲正割脉冲发生器Sine generator 正弦波产生器 Triangle pulse generator 三角脉冲产生Saw-up pulse generator 上升锯齿波产生器Saw-down pulse generator 下降锯齿波产生器Impulse generator 脉冲产生器 Raised cosine pulse generator 升余弦脉Sine pulse generator 正弦脉冲 Measured pulse 测量脉冲Measured pulse sequence 测量脉冲组 Bias generator 电流偏差产生器Duobinary pulse generator 二进制脉冲产生器Electrical jitter 电抖动 Noise source 噪声源Predistortion预失真、预矫正 M-ary pulse generator M进制脉冲发生器M-ary raised cos ine pulse ge nerator M 进制升余弦脉冲发生器Optical:Optical Gaussian pulse generator 高斯光脉冲产生器Optical sech pulse generator 双曲正割光脉冲产生器Optical impulse generator 光测量脉冲发生器 Measured optical pulse 测量脉Measured optical pulse sequence 测量光脉冲组TRC measurement date TRC 测量数据Spatial optical gaussian pulse generator 高斯空间光脉冲产生器Spatial optical impulse generator 空间光脉冲产生器Spatial optical sech pulse generator 双曲正割空间光脉冲产生器Optical modulators 光调制器Mach-zehnder modulator M-Z 调制器 Electroabsorption modulator 电吸收调制器Amplitude modulator 调幅 Phase modulator 调相Frequency modulator 调频Dual drive Mach-zehnder modulator measured 双驱动 M-Z 调制器Electroabsorption modulator measured 电吸收调制器Single drive Mach-zehnder modulator measured 单驱动 M-Z 调制器Dual port dual drive Mach-zehnder modulator measured 双端口双驱动 M-Z 调制器LiNb Mach-zehnder modulator LiNb M-Z 调制器Optical transmitters 光发送机WDM transmitter 波分复用光发送机Spatial optical transmitter 空间光发送机Optical transmitter 光发送机Multimode 多模Multimode generator 多模产生器Laguerre transverse mode generator 拉盖尔横模产生器Donut transverse mode generator 环行横模产生器Measured transverse mode generator 可调横模产生器(3) WDM multiplexers library WDM 多路复用器Add and drop 分插复用WDM add 合复用器WDM drop 分复用器WDM add and drop 分插复用器Demultiplexers 解复用器WDM demux 1x2 1x2 解复用器 WDM demux 1x4 1x4 解复用器WDM demux 1x8 1x8 解复用器 WDM demux WDM 解复用器Ideal demux 理想解复用器WDM demux ES 额外区段波分复用器WDM interleaver demux 交错波分复用器Multiplexers 复用器WDM mux 2x1 2x1 复用器WDM mux 4x1 4x1 复用器WDM mux 8x1 8x1 复用器WDM mux 复用器Ideal mux 理想复用器WDM mux ES 额外波段复用器Nx1 mux bidirectional Nx1 双向复用器AWG 阵列波导光栅AWG NxN NxN 阵列波导光栅AWG NxN bidirectional NxN 双向阵列波导光栅(4) Optical fibers library 光纤组件Multimode：linear multimode fiber 线性多模光纤Measured-index multimode fiber 指数多模光纤Parabolic-index multimode fiber 抛物线形多模光纤Optical fiber 光纤Optical fiber CWDM 稀疏波分复用光纤Bidirectional optical fiber 双向光纤(5) Amplifiers library 放大器件OpticalEDFA:Erbium doped fiber 掺饵光纤EDFA 掺饵光纤放大器 EDFA black box EDFA 黑盒子Optical amplifier 光放大器 EDFA measured 基于标准的掺饵放大器EDF dynamic 可移动掺饵光纤 EDF dynamic analytical 动态分析Er-Yb codoped fiber 铒-镱混合掺杂光纤 Yb doped fiber 掺镱光纤Yb doped fiber dynamic 可移动掺镱光纤Er-Yb codoped fiber dynamic 可动铒-镱混合掺杂光纤Ranam : Raman amplifier average power model 拉曼平均功率放大器SOA:Raman amplifier dynamic model 拉曼放大器动态模型Traveling wave。
