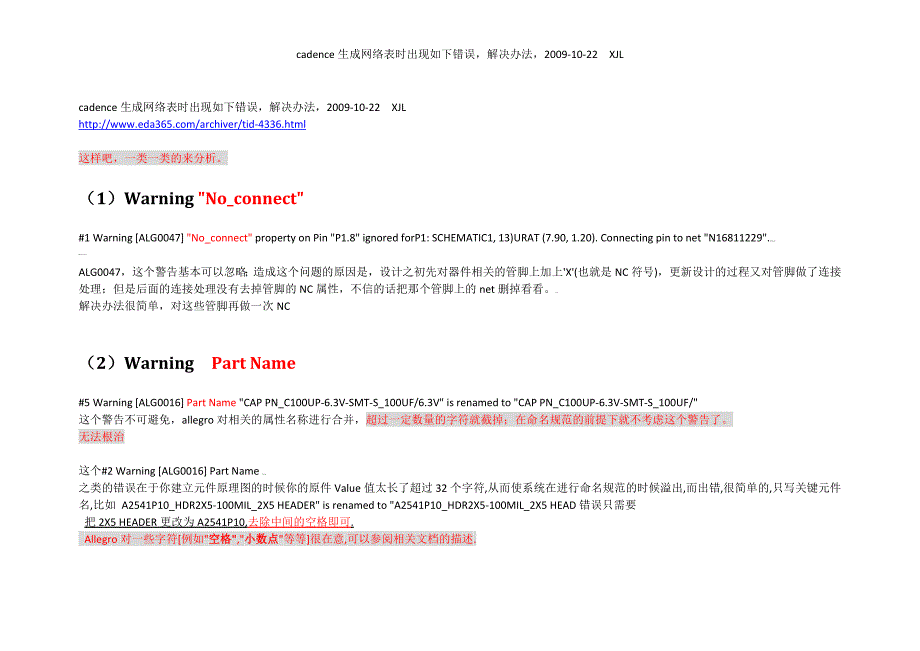

cadence 生成网络表时出现如下错误，解决办法，2009-10-22 XJLcadence 生成网络表时出现如下错误，解决办法， 2009-10-22 XJL ） Warning "No_connect"#1 Warning [ALG0047] "No_connect" property on Pin "P1.8" ignored forP1: SCHEMATIC1, 13)URAT (7.90, 1.20). Connecting pin to net "N16811229".&H)K]-hwM$k3D3pd-T$W7heALG0047，这个警告基本可以忽略；造成这个问题的原因是，设计之初先对器件相关的管脚上加上'X'(也就是 NC 符号) ，更新设计的过程又对管脚做了连接处理；但是后面的连接处理没有去掉管脚的 NC 属性，不信的话把那个管脚上的 net 删掉看看 RG9f解决办法很简单，对这些管脚再做一次 NC（2 ） Warning Part Name#5 Warning [ALG0016] Part Name "CAP PN_C100UP-6.3V-SMT-S_100UF/6.3V" is renamed to "CAP PN_C100UP-6.3V-SMT-S_100UF/"这个警告不可避免，allegro 对相关的属性名称进行合并，超过一定数量的字符就截掉；在命名规范的前提下就不考虑这个警告了。
无法根治这个#2 Warning [ALG0016] Part Name "?j#w?rm之类的错误在于你建立元件原理图的时候你的原件 Value 值太长了超过 32 个字符,从而使系统在进行命名规范的时候溢出,而出错, 很简单的,只写关键元件名,比如 A2541P10_HDR2X5-100MIL_2X5 HEADER" is renamed to "A2541P10_HDR2X5-100MIL_2X5 HEAD 错误只需要把 2X5 HEADER 更改为 A2541P10,去除中间的空格即可.Allegro 对一些字符[ 例如" 空格","小数点"等等]很在意,可以参阅相关文档的描述 .cadence 生成网络表时出现如下错误，解决办法，2009-10-22 XJL（3 ） Error Illegal character "Dot(.)" found in "PCB Footprint"#1 Error [ALG0081] Illegal character "Dot(.)" found in "PCB Footprint" property for component instance C255: PG16_AC97, PG16_AC97 (226.06, 132.08) .封装命名不能包含“.”（4 ） Error Illegal character "Forward Slash(/)" found in "PCB Footprint" property#1 Error [ALG0081] Illegal character "Forward Slash(/)" found in "PCB Footprint" property for component instance C255: PG16_AC97, PG16_AC97 (226.06, 132.08) .#2 Error [ALG0081] Illegal character "Forward Slash(/)" found in "PCB Footprint" property for component instance D3: PG01_LED&Switch&7-Segment Disp, PG01_LED&Switch&7-Segment Disp (93.98, 33.02) .#3 Error [ALG0081] Illegal character "Forward Slash(/)" found in "PCB Footprint" property for component instance C245: PG16_AC97, PG16_AC97 (205.74, 35.56) .封装命名不能包含“/”（5 ）比较隐藏的排除法Loading... E:\FPGA\SCH\allegro/pstchip.datcadence 生成网络表时出现如下错误，解决办法，2009-10-22 XJL#34 WARNING(SPCODD-34): Expected ';' character on line 5308. Check the name and value syntax for invalid characters in the primitive definition before the line number.ERROR(SPCODD-47): File ./allegro/pstchip.dat could not be loaded, and the packaging operation did not complete. Check the pxl.log file for the errors causing this situation and package the design again.#53 ERROR(SPCODD-53): Packaging cannot be completed because packaging has encountered a null object ID. The design may not have been saved correctly. Save the schematic and rerun packaging.#187 Error [ALG0036] Unable to read logical netlist data.Exiting... "D:\Cadence\SPB_16.2\tools\capture\pstswp.exe" -pst -d "E:\FPGA\SCH\motherboard.dsn" -n "E:\FPGA\SCH\allegro" -c "D:\Cadence\SPB_16.2\tools\capture\allegro.cfg" -v 3 -j "PCB Footprint"*** Done*******掌握排错方法，查找文件 pstchip.dat，第 on line 5308 看看错误，便可以解决（6 ） 封装命名中不能包含“小数点” 、 “/”、 “空格” ，把空格换成下划线或删除，可以解决********************************************************************************** Netlisting the design *********************************************************************************Design Name:E:\FPGA\SCH\basicboard.dsnNetlist Directory:E:\FPGA\SCH\allegroConfiguration File:cadence 生成网络表时出现如下错误，解决办法，2009-10-22 XJLD:\Cadence\SPB_16.2\tools\capture\allegro.cfgSpawning... "D:\Cadence\SPB_16.2\tools\capture\pstswp.exe" -pst -d "E:\FPGA\SCH\basicboard.dsn" -n "E:\FPGA\SCH\allegro" -c "D:\Cadence\SPB_16.2\tools\capture\allegro.cfg" -v 3 -j "PCB Footprint"#1 Error [ALG0081] Illegal character "White space" found in "PCB Footprint" property for component instance MG2: Basic, PG06_Stepmotor (180.34, 83.82) .#2 Error [ALG0081] Illegal character "White space" found in "PCB Footprint" property for component instance ISO1: Basic, PG05_DC Motor (134.62, 40.64) .#3 Info: PCB Editor does not support Dots(.), Forward Slash(/) and White space in footprint names. The supported characters include Alphabets, Numerics, Underscore(_) and Hyphen(-).#4 Aborting Netlisting... Please correct the above errors and retry.Exiting... "D:\Cadence\SPB_16.2\tools\capture\pstswp.exe" -pst -d "E:\FPGA\SCH\basicboard.dsn" -n "E:\FPGA\SCH\allegro" -c "D:\Cadence\SPB_16.2\tools\capture\allegro.cfg" -v 3 -j "PCB Footprint"*** Done ***封装命名中不能包含“小数点” 、 “/”、 “空格” ，把空格换成下划线或删除，可以解决（7 ） Warning#11 Warning [ALG0051] Pin "GND" is renamed to "GND#A6" after substituting illegal characters in Package XC3S1400A-4FG676-C_0FF , U1A: SCHEMATIC1, PG01_FPGACONFIG (2.40, 3.10).#12 Warning [ALG0051] Pin "GND" is renamed to "GND#A11" after substituting illegal characters in Package XC3S1400A-4FG676-C_0FF , U1A: SCHEMATIC1, PG01_FPGACONFIG (2.40, 3.10).cadence 生成网络表时出现如下错误，解决办法，2009-10-22 XJL#13 Warning [ALG0051] Pin "GND" is renamed to "GND#A1" after substituting illegal characters in Package XC3S1400A-4FG676-C_0FF , U1A: SCHEMATIC1, PG01_FPGACONFIG (2.40, 3.10).#14 Warning [ALG0051] Pin "GND" is renamed to "GND#W8" after substituting illegal characters in Package XC3S1400A-4FG676-C_0FF , U1A: SCHEMATIC1, PG01_FPGACONFI。
