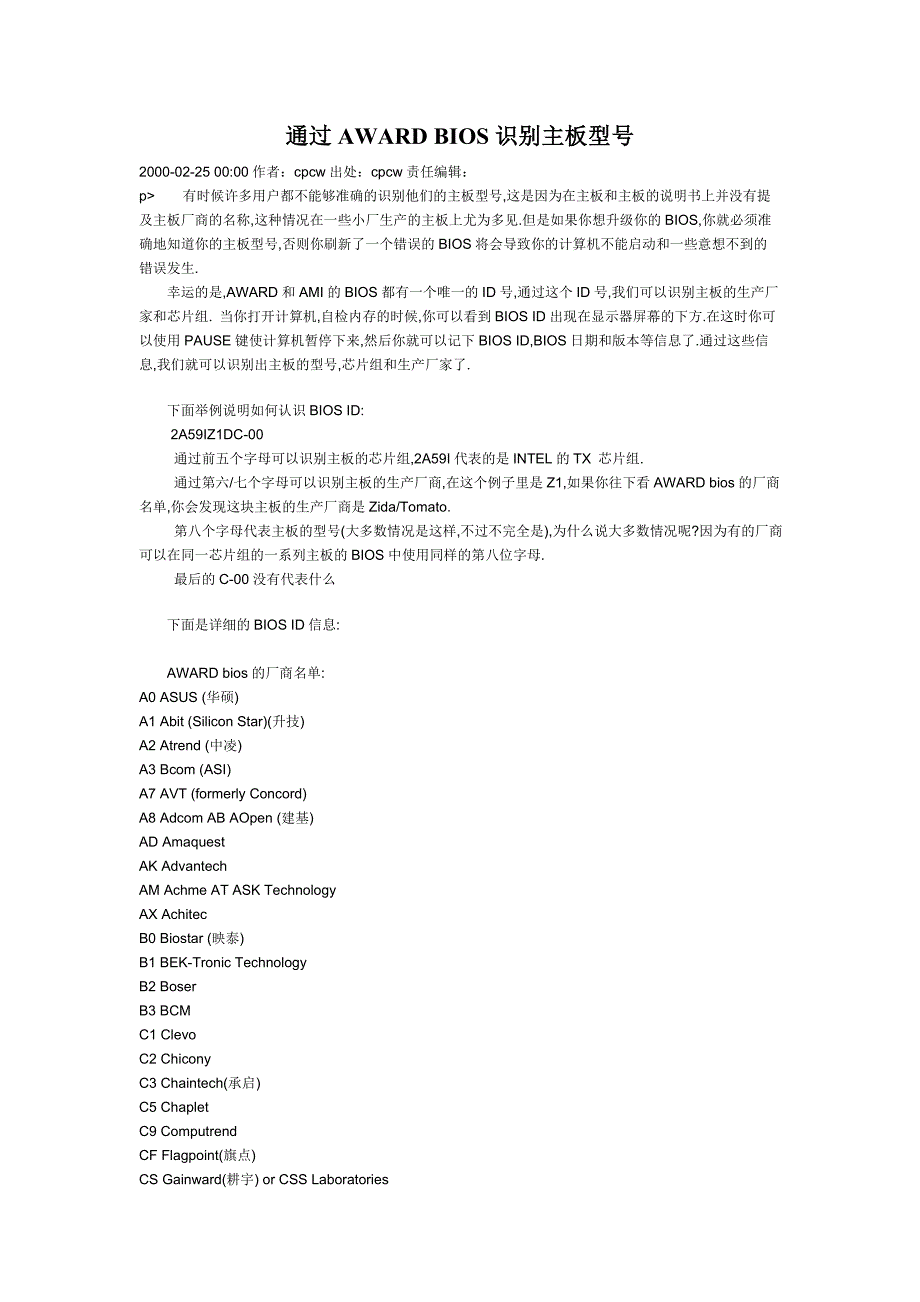

通过award bios识别主板型号

通过通过 AWARD BIOS 识别主板型号识别主板型号2000-02-25 00:00 作者：cpcw 出处：cpcw 责任编辑：p> 有时候许多用户都不能够准确的识别他们的主板型号,这是因为在主板和主板的说明书上并没有提及主板厂商的名称,这种情况在一些小厂生产的主板上尤为多见.但是如果你想升级你的 BIOS,你就必须准确地知道你的主板型号,否则你刷新了一个错误的 BIOS 将会导致你的计算机不能启动和一些意想不到的错误发生.幸运的是,AWARD 和 AMI 的 BIOS 都有一个唯一的 ID 号,通过这个 ID 号,我们可以识别主板的生产厂家和芯片组. 当你打开计算机,自检内存的时候,你可以看到 BIOS ID 出现在显示器屏幕的下方.在这时你可以使用 PAUSE 键使计算机暂停下来,然后你就可以记下 BIOS ID,BIOS 日期和版本等信息了.通过这些信息,我们就可以识别出主板的型号,芯片组和生产厂家了. 下面举例说明如何认识 BIOS ID:2A59IZ1DC-00通过前五个字母可以识别主板的芯片组,2A59I 代表的是 INTEL 的 TX 芯片组.通过第六/七个字母可以识别主板的生产厂商,在这个例子里是 Z1,如果你往下看 AWARD bios 的厂商名单,你会发现这块主板的生产厂商是 Zida/Tomato.第八个字母代表主板的型号(大多数情况是这样,不过不完全是),为什么说大多数情况呢?因为有的厂商可以在同一芯片组的一系列主板的 BIOS 中使用同样的第八位字母.最后的 C-00 没有代表什么 下面是详细的 BIOS ID 信息:AWARD bios 的厂商名单:A0 ASUS (华硕)A1 Abit (Silicon Star)(升技)A2 Atrend (中凌)A3 Bcom (ASI)A7 AVT (formerly Concord)A8 Adcom AB AOpen (建基)AD Amaquest AK AdvantechAM Achme AT ASK Technology AX Achitec B0 Biostar (映泰) B1 BEK-Tronic TechnologyB2 Boser B3 BCM C1 ClevoC2 ChiconyC3 Chaintech(承启)C5 Chaplet C9 ComputrendCF Flagpoint(旗点)CS Gainward(耕宇) or CSS Laboratories D0 Dataexpert(联讯)D1 DTK D2 DigitalD3 DigicomD4 DFI (Diamond Flower) (Crusader?)(钻石)D7 DaewooDE Dual TechDI Domex (DTC)DJ Darter DL Delta ElectronicsE1 ECS (Elitegroup) (精英)E3 EFAE4 ESPCo E6 ElonexEC ENPC F0 FIC (FICA)(大众)F1 Flytech Group InternationalF2 ee Tech or flexus?F3 Full Yes (福扬) F5 FugutechF8 Formosa Industrial ComputingF9 Fordlian G0 Giga-byte(技嘉) G1 GIT???G3 GemlightG5 GVC (致福)G9 Global Circuit TechnologyGA GiantecGE Zaapa H0 Hsing-Tech (PcChips)H2 HOLCO (Shuttle)HH HighTech Information SystemI3 IWill(艾崴)I4 Inventa (Twn)I5 InformtechI9 ICP IA Infinity (?)IC Inventec (notebooks)IE ItriJ1 Jetway (Jetboard, Acorp)J2 Jamicon (Twn)J3 J-Bond(捷波)J4 JettaJ6 Joss K0 KapokK1 KameiKF KinpoL1 Lucky StarL7 Lanner Electronics Inc.L9 Lucky TigerM0 MatraM2 Mycomp (TMC) and Megastar(麦肯/皇朝)M3 MitacM4 Micro-star(微星)M8 MustekM9 MLE MH MacrotekN0 NexcomN5 NECNM NMC (New Media Communication)NX NexarO0 Ocean (Octek)(海洋) P1 PC-Chips (明致)P4 Asus (华硕)P6 Pro-TechP8 AzzaP9 PowertechPA Epox (Pronix) BIOS rev.D03 09/26/95) 2A4IBADBC-00: AMAQUEST (AP8548 BIOS VER.D12 RELEASE 12/21/95 UMC8669) 2A4IBB12C-00: Lucky Star P407 rev. 2.0 2A4IBB3HC-00: BCM LX770 486 PCI 2A4IBB62C-00: ??? 2A4IBC32-B2: Chaintech ? (model: ???) 2A4IBC32-B3: Mylex MPXS486 (Chaintech ?) 2A4IBC31-01: ??? (Chaintech ?) 2A4IBC31-B2: ??? (Chaintech ?) 2A4IBC31C: Chaintech (model: ???) 2A4IBC32: ??? (Chaintech ?) 2A4IBC32-B2: Chaintech 486SPM 2A4IBC32-B3: ??? (Chaintech ?) 2A4IBC32C-00: Chaintech 486SPM M1.02 2A4IBC3I: Chaintech 486SPM 2A4IBC3IC-00: Chaintech 486SPM 2A4IBF2HC-00: Freetech 486F55 2A4IBG32: ??? (Gemlight GMB-486SPS) 2A4IBG3IC: DTK (?) GMB-486SPS (Gemlight ?) 2A4IBJ11C-00: Jetway/JetBoard J-446-A V2.0 2A4IBJ19C-00: Jetway/JetBoard J-446-A V2.0 2A4IBJ31-00: J-Bond PCI-400C-C 2A4IBK11C-00: ??? (Model: SIS486 PCI) 2A4IBL1B: SIS 486 PCI/ISA MINI-SIZE / SIS 85C496 (Lucky Star ?) 2A4IBL12C-00: Lucky Star (model: ???) 2A4IBL13: Lucky Star 4C-1 2A4IBL13C: Lucky Star LS-486E 2A4IBM91C: MLE (model: ???) 2A4IBPA1-00 : ??? (Green GXA486SP VESA ISA PCI) 2A4IBPA4C-00: Pronix/Epox GXA486SPM (comes with EPROM or Flash ROM) 2A4IBP82C: Azza model: 4SPI / chipset: SiS-496/497 2A4IBR02-00: M Technology R418 2A4IBR02C: M Technology R418 2A4IBR03C-00: M Technology R418 2A4IBR04C-00: Rise (Mtech) R418 2A4IBR21: ??? (Model: Terminator) 2A4IBR22C-00: KAIMEI/Jamicon KM-S4-1 ver 4.2 or 4.3 2A4IBR2CC: ARSTORIA AS496 2A4IBS21-00: Soyo (model: ???) 2A4IBS22-00: Soyo 4S A2/A5 2A4IBS29: Soyo 4sa w2/w5 2A4IBS29C-00: Soyo 486 PCI/VESA GREEN MAINBOARD 4SA W2/W5 2A4IBS2hC: SOYO 4SA2 2A4IBS91-00: ??? (Spring Circle ?) 2A4IBT42: ??? 2A4IBT42C: Taken PCI-400 2A4IBTJ9: Totem TM-486SPS 2A4IBTJ9C: Totem TM-486SPS 2A4IBZ11C-00: Zida 4DPS-256k Tomato Board SIS-496-497B-PVI-43P3-00: Asus PVI-486SP3 Ali 1439/45/31 Chipset2A4KC000-09: ??? 2A4KCM02-00: Matra (model: ???) 2A4KCM22-00: MyComp (TMC) (model: ???) Ali 1487/1489 Chipset2A4KD608c-00: ??? 2A4KDA12C-C5: Abit PB4 2A4KDA12C-7A: Abit PB4 2A4KDA12C-B8: Abit PB4 2A4KDA12C-D2: Abit PB4 2A4KDA12C-5E: Abit PB4 2A4KDA1BC-6A: ABIT Motherboard mod. PB4 with ALI 1487/89 chipset 2A4KDB1AC-00: ??? (Model: BEK-P405) 2A4KDF1AC-00: Flytech A47 Green PC V1.0D 5430 PnP 2A4KDJ1H: JetBoard/Jetway J-426 2A4KDJ1HC: JetBoard/Jetway J-426 2A4KDSEH: ??? 2A4KDG09C-00: Gigabyte GA-5486AL 2A4KDSEI: ??? (Terminator SMT) 2A4KDSEIC-00: Manufacturer: ALI 1487/89 PCI M/B Model: TERMINATOR-SMT 486/5x86 PCI-22E 9/26/95 ALI I/O ONLY 2A4KDSEK-00: ??? (Model: ALI-1487,89 PCI M/B) 2A4KDW0GC-00: Edom / Wintec MP060 Rev A 2A4KDZ11C: ??? VIA 486A/482/505 Chipset2A4L4000-00: FIC 486-PVT or 486-VIP-IO or 486-VIP-IO2 or Aries 2(BIOS not flashable) 2A4L4J11-00: Jetway/Jetboard J-433 VIA 496/406/505 Chipset2A4L6F0A: Fic 486-PIO-2 2A4L6F0IC-00: FIC 486-PIO-2 2A4L6J11-00: Jet Board J-437 OPTI-802G-822 Chipset2A4UKM21-00: TMC PCI48PG/PG4 2A4UKS21-00: Soyo 030F2 2A4UKW01-00: Wintec 。
