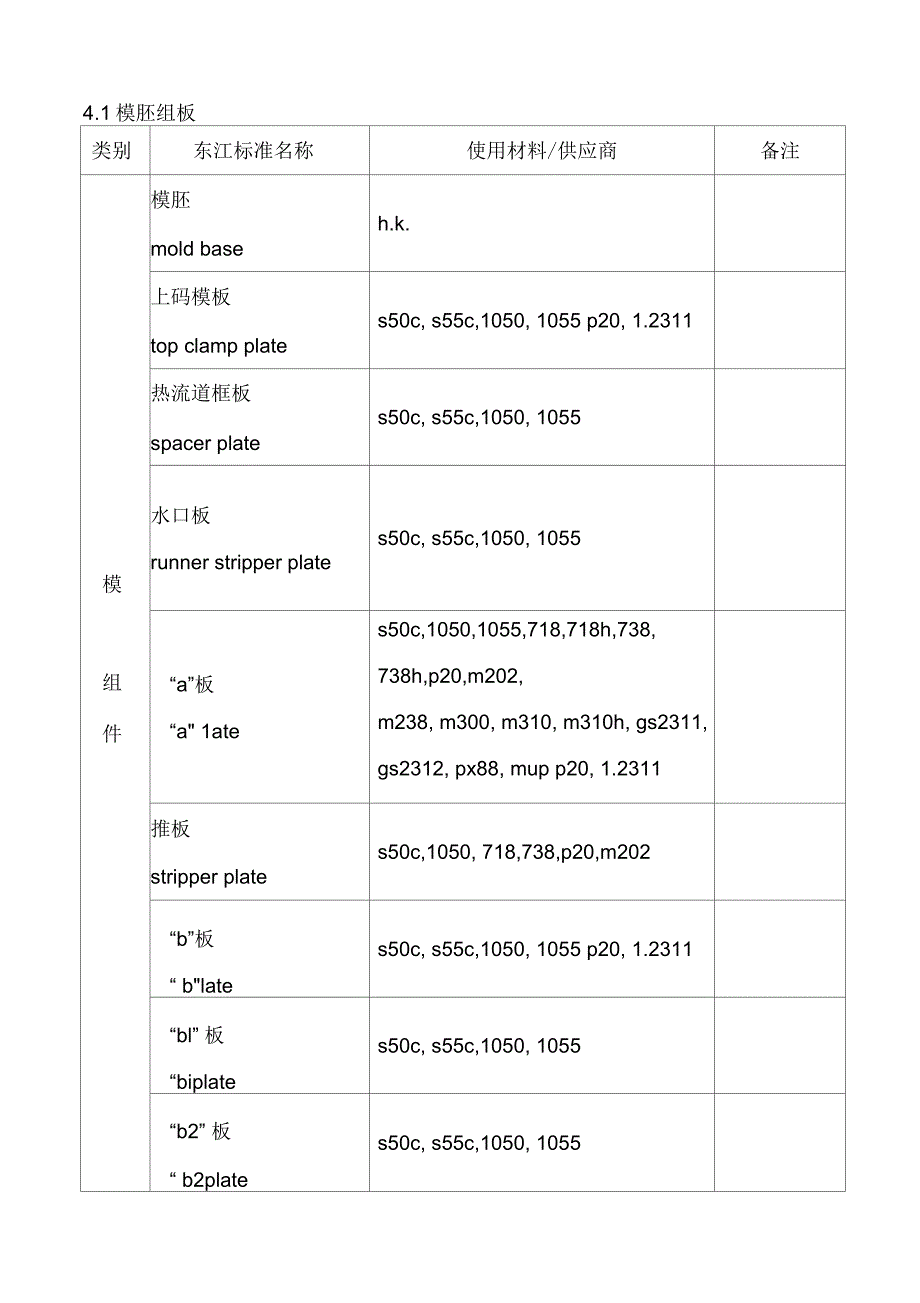

4.1模胚组板类别东江标准名称使用材料/供应商备注模组件模胚mold baseh.k.上码模板top clamp plates50c, s55c,1050, 1055 p20, 1.2311热流道框板spacer plates50c, s55c,1050, 1055水口板runner stripper plates50c, s55c,1050, 1055“a”板“a" 1ates50c,1050,1055,718,718h,738,738h,p20,m202,m238, m300, m310, m310h, gs2311,gs2312, px88, mup p20, 1.2311推板stripper plates50c,1050, 718,738,p20,m202“b”板“ b"lates50c, s55c,1050, 1055 p20, 1.2311“bl” 板“biplates50c, s55c,1050, 1055“b2” 板“ b2plates50c, s55c,1050, 1055托板support plates50c, s55c,1050, 1055凳仔方spacer blocks50c, s55c,1050,1055,顶针板ejector plates50c, s55c,1050, 1055 p20, 1.2311顶针托板ejector retainer plates50c, s55c,1050, 1055 p20, 1.2311卜码模板bottom clamp plates50c, s55c,1050, 1055 p20, 1.2311回针return pinstd,dme,dmeeqv,hasco,hascoeqv, daido边钉guide pinstd,dme,dmeeqv,hasco,hascoeqv, daido边司guide bushstd,dme,dmeeqv,hasco,hascoeqv, daido哥林柱ejector guide pinstd,dme,dmeeqv,hasco,hascoeqv, daido中托司ejector guide bushstd,dme,dmeeqv,hasco,hascoeqv, daido4.1模胚组板类别东江标准名称使用材料/供应商备注模组件水口边support pinstd,dme,dmeeqv,hasco,hascoeqv, daido直司straight guide bushstd,dme,dmeeqv,hasco,hascoeqv, daido托边shoulder guide pinstd,dme,dmeeqv,hasco,hascoeqv, daido4.2 成型件类别东江标准名称使用材料/供应商备注上模肉cavity insert下模肉core insert上模镶件cavity small insert下模镶件core small insert行位slide block行位镶件slide insert可换镶件exchangeable insert水口镶件runner insert斜顶镶件cam insertassab: 718,718h,s136h,s7,s136, 635,8407,618german: gs711, gs638,gs738,gs767,gs2311,gs2312,gs2083,gs2083h,gs2316, gs2344 esr,gs2344 efs, gs307,gs316, gs316 esrbohler:m202,m238,m300,m310,m310h,m461daido:nak55,nak80,pak90,px88,pds3,skd11,skd61,dh2f p20, 738h,mup, h13, pm35,420,420h, sm.v3,m.e.k4becu max30 钺铜），becu max40钺铜）,s136, 8407,:gs2083 esr, gs2344, h13:淬火后二次回 火，硬度 hrc48~52. hardened, hrc 48~52gs2083 var, 420:淬火后 二次回火，硬度 hrc52~56. hardened, hrc 52~56氮化0.15深，硬度hrc68~70 nitrided 0.15dep , hrc68~70上模镶针cavity insert pin下模镶针core insert pin行位镶针slide insert pin斜顶镶针cam insert pinstd,dme,dme eqv, hasco,hasco eqv, rabourdin,daido, daido eqv正专冈 puch,misumi采用标准顶针改做上模肉压块cavity clamp下模肉压块core clamps50c, 1050, p20日期镶针date indicator环保镶针recycle marked pinstd,dme,dme eqv,hasco hasco eqv,daido, daido eqv,puch,misumi,哥针core pindaido, daido eqv, dme,dme eqv疏气针gas expellerdaido4.3浇注系统类别东江标准名称使用材料/供应商备注浇注系统法兰locating rings50c,1050唧咀sprue bushing法兰唧咀sprue bushing locating唧咀头sprue gates50c,1050,420,o1 p20s50c,1050:渗碳0.3深，硬度hrc 52~56carburized 0.3dephrc 52~56o1:淬火后二次回火，硬 度 hrc52〜56. hardened, hrc 52~56加长唧咀extend sprue bushing浇口套gate bush420唧咀身sprue bodys50c,1050,420,becumax40,o1s50c,1050:渗碳0.3深，硬度hrc52~56carburized 0.3dephrc 52~56o1:淬火后二次回火，硬 度 hrc52〜56. hardened, hrc 52~56唧咀套sprue bushs50c铁管steel pipes50c4.4 发热元件、热流道系统类别东江标准名称使用材料/供应商备注发执 八、、元件、热流道系钢“0”令steel o-ringdme热流道板hot manifold420,dme,隔热板high temp. insulator sheetdme,hasco隔热垫riser pad420,dme,hasco,mold-master,yudo统中心垫center support pad420,dme,hasco,mold-master,yudo阀针系统valve gate systemdme,hasco,mold-master,yudo热唧咀heater nozzledme,hasco,mold-master,yudo热唧咀定位套nozzle bushdme,hasco,mold-master,yudo热唧咀头heater sprue gatedme,hasco,mold-master,yudo封针closed pindme,hasco,mold-master,yudo封针衬套closed pin banddme,hasco,mold-master,yudo发热圈band heaterdme发热片heater sheetdme热电偶thermocoupledme延长咀头extend nozzle发热冗heater shelldme唧咀隔热套gate shell insulatorhasco, yudo, dme发热管manifold heaterdme发热管尾塞heater pullerdme4.4 发热元件、热流道系统类别东江标准名称使用材料/供应商备注发执八、、元件、热流道系统流道尾塞end plug420,dme发热管压块heater clamps50c冷却套cooling bushmold-master背板back platemold-master温控器temp. control moduledme,mold-master,yudo,hasco温控箱main framedme,mold-master,yudo,hasco接线盒terminal mounting boxhating,dme,mold-master,yudo,hasco电源线power cablestd电缆moldpower-thermocouplecablestd电源/电偶接头power/signal adapterstd电源/电偶插座power/signal connectorstd保温铝板reflector sheethasco热流道板附件accessory kithasco热唧咀过滤器filter cartridgehasco4.5脱模构件类东江标准名称使用材料/供应商备注别脱模构件行位压片gibo1淬火后二次回火，硬度 hrc52~56.hardened, hrc 52~56铲基wedgep20,s50c,1050 01s50c,1050:渗碳0.3深，硬度hrc52~56carburized 0.3dephrc 52~5601:淬火后二。
