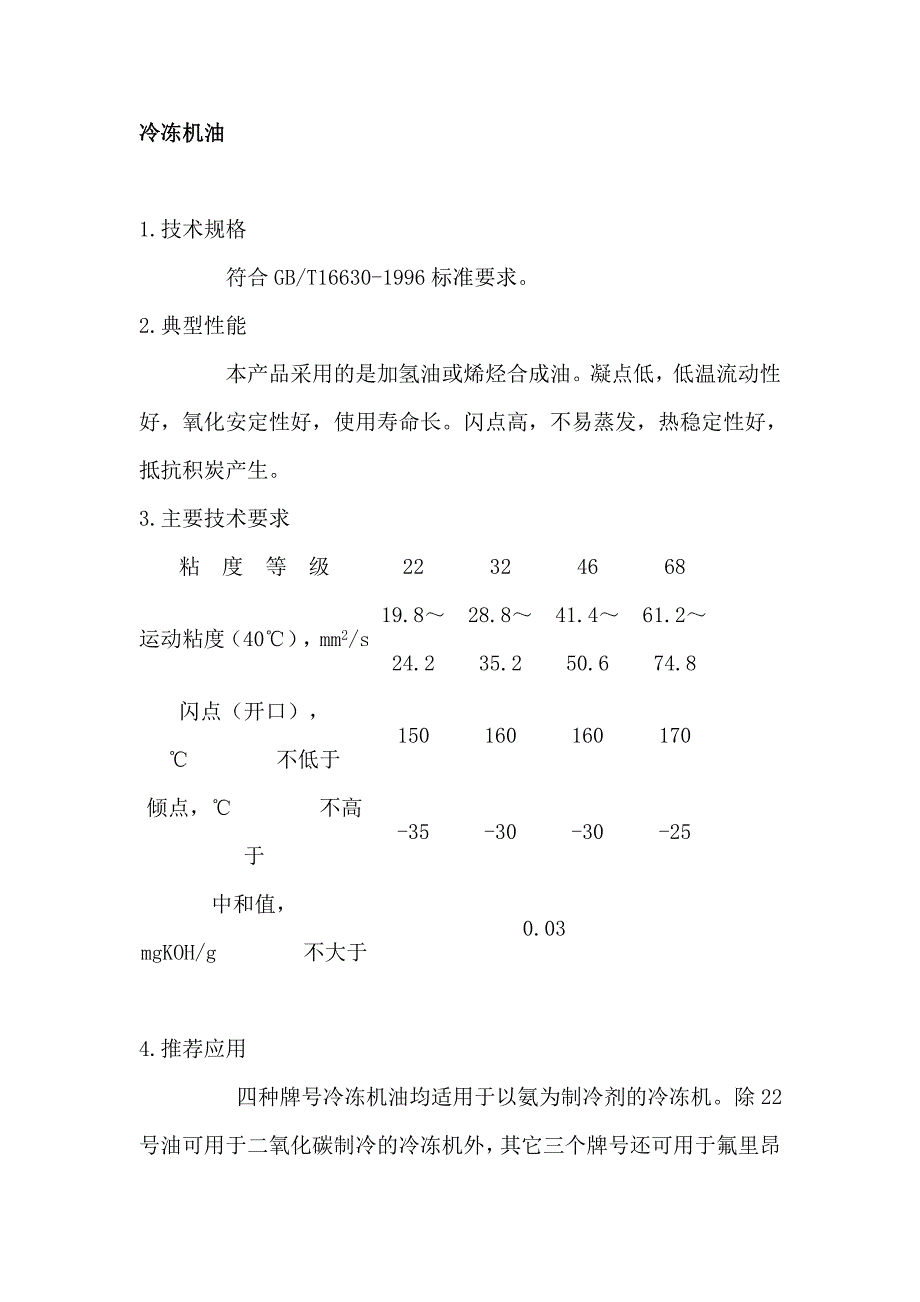

冷冻机油 1.技术规格 符合GB/T16630-1996标准要求2.典型性能 本产品采用的是加氢油或烯烃合成油凝点低，低温流动性好，氧化安定性好，使用寿命长闪点高，不易蒸发，热稳定性好，抵抗积炭产生3.主要技术要求粘 度 等 级22324668运动粘度（40℃），mm2/s19.8～24.228.8～35.241.4～50.661.2～74.8闪点（开口），℃ 不低于150160160170倾点，℃ 不高于-35-30-30-25中和值，mgKOH/g 不大于0.034.推荐应用 四种牌号冷冻机油均适用于以氨为制冷剂的冷冻机除22号油可用于二氧化碳制冷的冷冻机外，其它三个牌号还可用于氟里昂制冷剂的冷冻机尺寸規格表型號牙制適用電纜線徑牙制外徑(mm)包裝數量CG-7BPG73~6.5mm12.450CG-9BPG94~8mm15.250CG-11BPG115~10mm18.650CG-13BPG136~12mm20.450CG-16BPG1610~14mm22.550CG-21BPG2113~18mm28.350CG-29BPG2918~25mm37.025CG-36BPG3622~32mm47.0 CG-42BPG4230~38mm53.7 CG-48BPG4834~44mm59.0 YCB 0°YCL 90°YCH 45°YCB 0°YCL 90°YCB4 YCMYCNPCB 0°PCL 90°MASPGGPFBPFLPGBPGL 90°YCT 90°YCS 0°U型管夾MS-3102AMCSMS3057MS25043MS25042CGTCGWL1INSTALLATION INSTRUCTION For Direct Fixing :Screw the nipple portion of the cable gland into housing tightly. In this case flat check nut is not required.For Fixing with lock nut: Wherever a blank hole is provided in the housing of the equipment, insert the nipple portion of the gland through this hole and fix it tightly by means of flat lock nut. Now pass the compression nut and the ring in succession ovre cable before commencing to terminate the cable. Then push the cable through the gland and tightly secure the compression nut. Due to pressure the ring will expand in radial direction so that it will have a tight grip over the outer sheath of cable thus effecting a dust proof entry of the cable.METRIC THREAD SKINTITE CABLE GLANDSNovoflexGlandPart NoEntryThreadSize (mm)EntryThreadLength (mm)AcrossFlatsmmAcrossComersmmSeallingRange (mm)Standard PackingMin.Max.NG 16MS161020226850NG 16M1610202281250NG 20MS2010262981250NG 20M20102629101650NG 25M25103033142150NG 32M32104146192725PG THREAD SKINTITE CABLE GLANDSNovoflexGlandPart NoEntryThreadSize (mm)EntryThreadLength (mm)SeallingRange (mm)Standard PackingSuitableLock NutsPart NoMin.Max.PG 7PG 783.5650LP-7PG 9PG 986850LP-9PG 11PG 11881050LP-11PG 13.5PG 13.59101250LP-13.5PG 16PG 1610121450LP-16PG 21PG 2111151750LP-21PG 29PG 2911182425LP-29PG 36PG 3613243010LP-36PG 42PG 4213303510LP-42PG 48PG 4815354010LP-48NOVOFLEX NYLON LOCK NUTS & BUSHES (METRIC THREAD)ProductNovoflexPart NoThreadSize(mm)AcrossFlat(mm)AcrossComer(mm)OverallDepthmmNYLON LOCK NUTSLN 16M 1620224LN 20M 2026294.5LN 25M 2530334.5LN 32M 3241465.7NYLON BUSHESNB 16M 16202213NB 20M 20262918NB 25M 25303318NB 32M 32414619。
