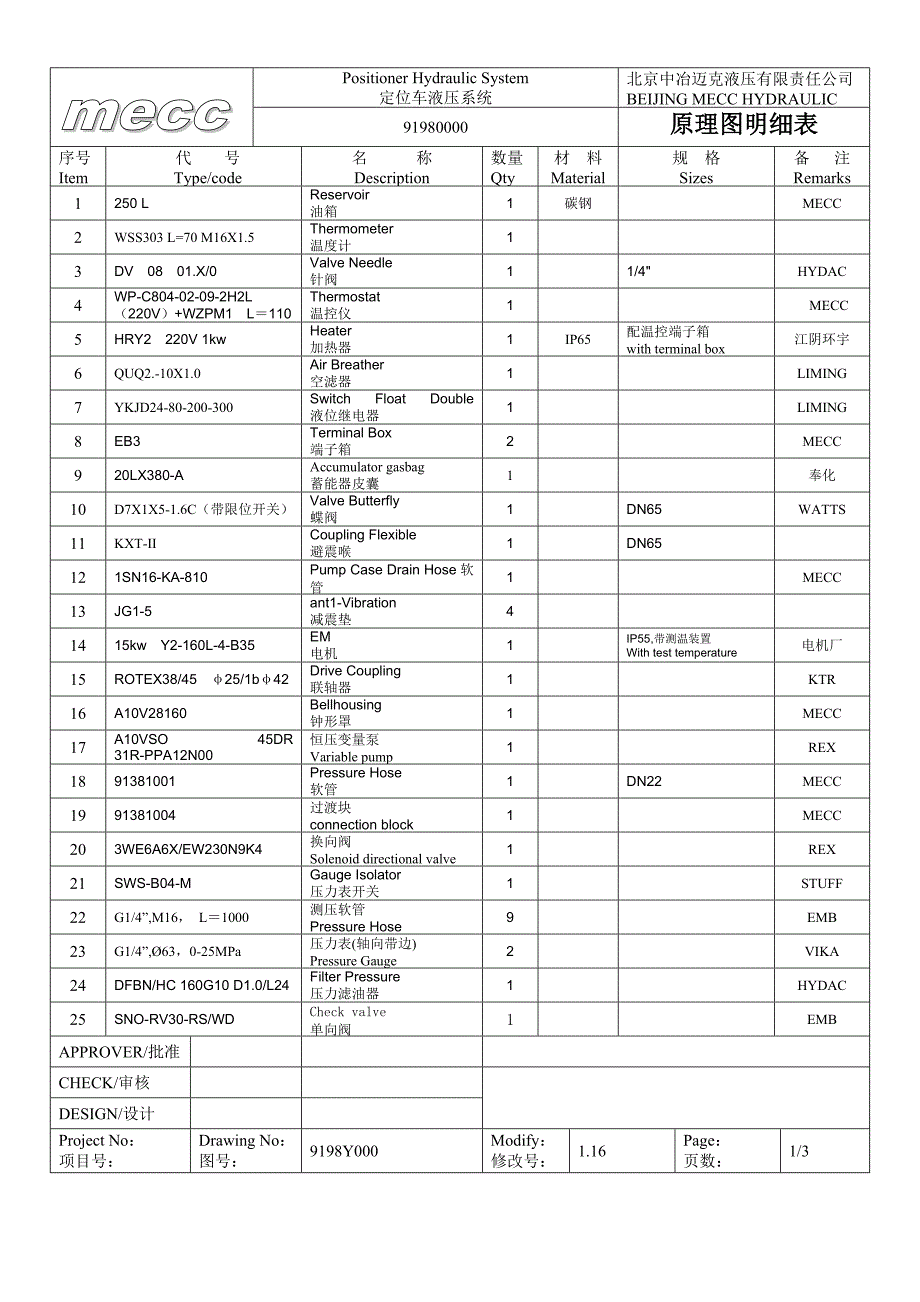

meccPositioner Hydraulic System定位车液压系统北京中冶迈克液压有限责任公司BEIJING MECC HYDRAULIC91980000原理图明细表序号 Item代 号Type/code名 称Description数量Qty材 料Material规 格Sizes备 注Remarks1250 LReservoir油箱1碳钢MECC2WSS303 L=70 M16X1.5Thermometer温度计1 3DV 08 01.X/0Valve Needle针阀11/4"HYDAC4WP-C804-02-09-2H2L（220V）+WZPM1 L＝110Thermostat温控仪1 MECC5HRY2 220V 1kw Heater加热器1IP65配温控端子箱with terminal box江阴环宇6QUQ2.-10X1.0Air Breather空滤器1LIMING7YKJD24-80-200-300Switch Float Double 液位继电器1LIMING 8EB3Terminal Box 端子箱2MECC920LX380-AAccumulator gasbag蓄能器皮囊1奉化10D7X1X5-1.6C（带限位开关）Valve Butterfly蝶阀1DN65WATTS11KXT-IICoupling Flexible避震喉1DN65121SN16-KA-810Pump Case Drain Hose软管1MECC13JG1-5ant1-Vibration减震垫4 1415kw Y2-160L-4-B35EM电机1IP55,带测温装置With test temperature 电机厂15ROTEX38/45 φ25/1bφ42Drive Coupling联轴器1KTR16A10V28160Bellhousing钟形罩1MECC17A10VSO 45DR 31R-PPA12N00恒压变量泵Variable pump1REX1891381001Pressure Hose软管1DN22 MECC1991381004过渡块connection block1MECC203WE6A6X/EW230N9K4换向阀Solenoid directional valve1REX21SWS-B04-MGauge Isolator压力表开关1STUFF22G1/4”,M16， L＝1000测压软管Pressure Hose9EMB23G1/4”,Ø63，0-25MPa压力表(轴向带边)Pressure Gauge2VIKA24DFBN/HC 160G10 D1.0/L24Filter Pressure 压力滤油器1HYDAC25SNO-RV30-RS/WDCheck valve单向阀1EMBAPPROVER/批准CHECK/审核DESIGN/设计Project No：项目号：Drawing No：图号：9198Y000Modify：修改号：1.16Page：页数：1/3meccPositioner Hydraulic System定位车液压系统北京中冶迈克液压有限责任公司BEIJING MECC HYDRAULIC91980000原理图明细表序号 Item代 号Type/code名 称Description数量Qty材 料Material规 格Sizes备 注Remarks26KHM- G1 1/4" -1112-E-2.000 Valve Ball球阀1（带限位开关）HYDAC27KXT-IICoupling Flexible避震喉1DN3228DSM80ant1-Vibration减震条2KTR290.75kw Y2-802-4-B35EM电机1电机厂3091381201Bellhousing钟形罩1MECC31ROTEX19 φ19/φ15.88Drive Coupling联轴器1KTR32PV2R1-17FRARVane pump叶片泵1阜新3391381002Pressure hose软管2MECC34G1/4”,Ø63，0-1.6MPaPressure Gauge压力表(轴向带边)1VIKA35DFBN/HC 110G 10 D1.0/L24Filter Pressure 压力滤油器1HYDAC36Z2DB10VD2-4X/200Relief valve叠加式溢流阀2REX37Z2FS10-5-3X/VThrottle valve叠加式节流阀2REX38Z2S10-1-3XPilot operated check valve叠加式液控单向阀2REX394WE10J3X/CW230N9K4Solenoid directional valve电磁换向阀2REX40ZDB6VP2-4X/200Relief valve叠加式溢流阀1REX41ZDR6DP2-4X/210YMPressure reducing valves叠加式减压阀1REX42Z2FS6B-5-4X/2QVThrottle valve叠加式节流阀1REX434WE6D6X/EW220N9K4Solenoid directional valve电磁换向阀1REX44HED8 0A 1X/200 K14SPressure switch压力继电器1REX45Air breather呼吸器2Metso46DN10 Pressure Hose软管6Metso47Rotary cylinder旋转油缸2Metso48Coupler release cylinder脱钩油缸1MECC49SB330-50A1/112A9-330A Accumulator蓄能器1HYDAC50空号APPROVER/批准CHECK/审核DESIGN/设计Project No：项目号：Drawing No：图号：9198Y000Modify：修改号：1.16Page：页数：2/3meccPositioner Hydraulic System定位车液压系统北京中冶迈克液压有限责任公司BEIJING MECC HYDRAULIC91980000原理图明细表序号 Item代 号Type/code名 称Description数量Qty材 料Material规 格Sizes备 注Remarks514WE6EA6X/EW230N9K4Solenoid directional valve电磁换向阀1REX52ZDB6VB2-4X-200Relief valve叠加式溢流阀1REX53Z1S6T2-30/Check valve叠加式单向阀1HUADE54G1/4”,M16Test Point测压接头12EMB55QFZ25-00Safe valves蓄能器安全阀组1MECC56YWZ-250Sight Glass 液位计157Q11F-16内螺纹球阀Check valve1DN20585960616263646566676869707172737475APPROVER/批准CHECK/审核DESIGN/设计Project No：项目号：Drawing No：图号：9198Y000Modify：修改号：1.16Page：页数：3/3 。
