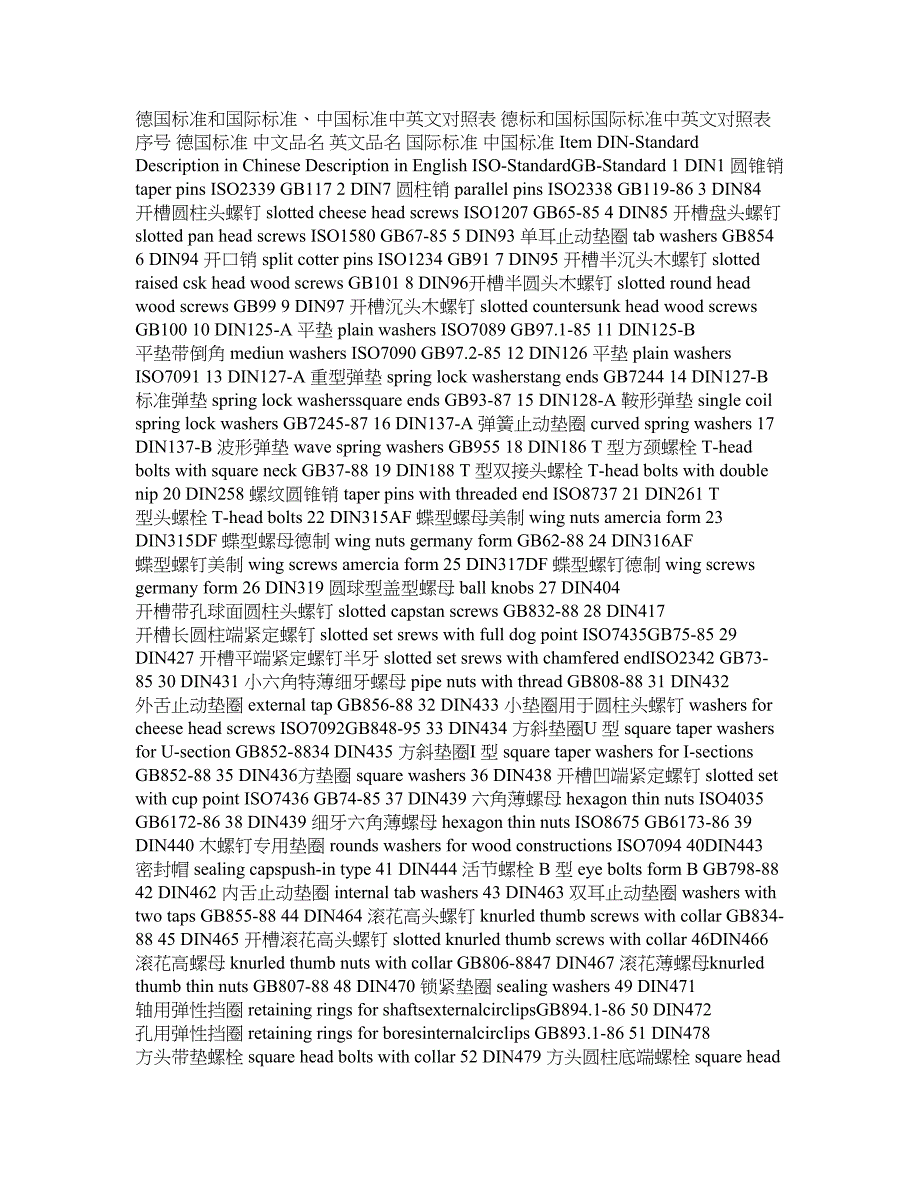

德国标准和国际标准、中国标准中英文对照表 德标和国标国际标准中英文对照表 序号 德国标准 中文品名 英文品名 国际标准 中国标准 Item DIN-Standard Description in Chinese Description in English ISO-StandardGB-Standard 1 DIN1 圆锥销 taper pins ISO2339 GB117 2 DIN7 圆柱销 parallel pins ISO2338 GB119-86 3 DIN84 开槽圆柱头螺钉 slotted cheese head screws ISO1207 GB65-85 4 DIN85 开槽盘头螺钉 slotted pan head screws ISO1580 GB67-85 5 DIN93 单耳止动垫圈 tab washers GB854 6 DIN94 开口销 split cotter pins ISO1234 GB91 7 DIN95 开槽半沉头木螺钉 slotted raised csk head wood screws GB101 8 DIN96开槽半圆头木螺钉 slotted round head wood screws GB99 9 DIN97 开槽沉头木螺钉 slotted countersunk head wood screws GB100 10 DIN125-A 平垫 plain washers ISO7089 GB97.1-85 11 DIN125-B 平垫带倒角 mediun washers ISO7090 GB97.2-85 12 DIN126 平垫 plain washers ISO7091 13 DIN127-A 重型弹垫 spring lock washerstang ends GB7244 14 DIN127-B 标准弹垫 spring lock washerssquare ends GB93-87 15 DIN128-A 鞍形弹垫 single coil spring lock washers GB7245-87 16 DIN137-A 弹簧止动垫圈 curved spring washers 17 DIN137-B 波形弹垫 wave spring washers GB955 18 DIN186 T 型方颈螺栓 T-head bolts with square neck GB37-88 19 DIN188 T 型双接头螺栓 T-head bolts with double nip 20 DIN258 螺纹圆锥销 taper pins with threaded end ISO8737 21 DIN261 T 型头螺栓 T-head bolts 22 DIN315AF 蝶型螺母美制 wing nuts amercia form 23 DIN315DF 蝶型螺母德制 wing nuts germany form GB62-88 24 DIN316AF 蝶型螺钉美制 wing screws amercia form 25 DIN317DF 蝶型螺钉德制 wing screws germany form 26 DIN319 圆球型盖型螺母 ball knobs 27 DIN404 开槽带孔球面圆柱头螺钉 slotted capstan screws GB832-88 28 DIN417 开槽长圆柱端紧定螺钉 slotted set srews with full dog point ISO7435GB75-85 29 DIN427 开槽平端紧定螺钉半牙 slotted set srews with chamfered endISO2342 GB73-85 30 DIN431 小六角特薄细牙螺母 pipe nuts with thread GB808-88 31 DIN432 外舌止动垫圈 external tap GB856-88 32 DIN433 小垫圈用于圆柱头螺钉 washers for cheese head screws ISO7092GB848-95 33 DIN434 方斜垫圈U 型 square taper washers for U-section GB852-8834 DIN435 方斜垫圈I 型 square taper washers for I-sections GB852-88 35 DIN436方垫圈 square washers 36 DIN438 开槽凹端紧定螺钉 slotted set with cup point ISO7436 GB74-85 37 DIN439 六角薄螺母 hexagon thin nuts ISO4035 GB6172-86 38 DIN439 细牙六角薄螺母 hexagon thin nuts ISO8675 GB6173-86 39 DIN440 木螺钉专用垫圈 rounds washers for wood constructions ISO7094 40DIN443 密封帽 sealing capspush-in type 41 DIN444 活节螺栓 B 型 eye bolts form B GB798-88 42 DIN462 内舌止动垫圈 internal tab washers 43 DIN463 双耳止动垫圈 washers with two taps GB855-88 44 DIN464 滚花高头螺钉 knurled thumb screws with collar GB834-88 45 DIN465 开槽滚花高头螺钉 slotted knurled thumb screws with collar 46DIN466 滚花高螺母 knurled thumb nuts with collar GB806-8847 DIN467 滚花薄螺母knurled thumb thin nuts GB807-88 48 DIN470 锁紧垫圈 sealing washers 49 DIN471 轴用弹性挡圈 retaining rings for shaftsexternalcirclipsGB894.1-86 50 DIN472 孔用弹性挡圈 retaining rings for boresinternalcirclips GB893.1-86 51 DIN478 方头带垫螺栓 square head bolts with collar 52 DIN479 方头圆柱底端螺栓 square head bolts with half dog point 53 DIN480 方头带垫半圆底端螺栓 square head bolts with collarhalf dog pointand rounded end 54 DIN508 T 型槽螺母 T-slot nuts ISO299 55 DIN525 单头螺柱 single end studs 56 DIN529 地脚螺栓 masonry bolts GB799-88 57 DIN546 带槽圆螺母 slotted round nuts GB817-76 58 DIN547 端面带孔圆螺母 round nuts with drilled holes in one face GB815-88 59 DIN551 开槽平端紧定螺钉 slotted sit screws with flat point ISO4776 GB73-85 60 DIN553 开槽锥端紧定螺钉 slotted set screws with cone point ISO7434 GB71-85 61 DIN555 六角螺母 hexagon nuts ISO4034 62 DIN557 方螺母-C square nuts GB39-88 63 DIN558 六角头螺钉 hexagon screws ISO4018 64 DIN561 六角头圆柱端紧定螺钉 hexagon set screws with full dog point 65 DIN562 薄型方螺母-B square nuts without bevelpressed nuts 66 DIN571 六角头木螺钉 hexagon head wood screws coach screws GB102-86 67 DIN580 吊环螺钉 lifting eye bolts ISO3266 GB825-76 68 DIN582 吊环螺母 lifting eye nuts 69 DIN601 六角头螺栓 hexagon bolts ISO4016 70 DIN603 大半圆头方颈螺栓马车螺栓 mushroom head square neck boltscarriage bolts ISO8677 GB14-88 71 DIN604 沉头带插销马车螺栓 flat countersunk nib bolts 72 DIN605 沉头长方颈马车螺栓 flat countersunk long square neck bolts 73 DIN607 半圆头带插销马车螺栓 cup head nib bolts 74 DIN608 沉头短方颈马车螺栓 flat countersunk short square neck bolts 75 DIN609 六角头精配螺栓〔长螺纹〕 hexagon fitted boltslong thread 76 DIN610 六角头精配螺栓〔短螺纹〕 hexagon fitted boltsshort thread 77 DIN653 滚花平头螺钉 knurled thumb screws thin type GB835-88 78 DIN660 半圆头铆钉 round head rivets ISO1051 GB867-86 79 DIN661 沉头铆钉 contersunk head rivets ISO1051 GB869-86 80 DIN662 半沉头铆钉 raised contersunk head rivets ISO1051 81 DIN674 大扁头铆钉 mushroom head rivets ISO1051 82 DIN703 重型侧面带孔圆螺母 adjusting ringsheavy range shafting collars 83 DIN705 侧面带孔圆螺母 adjusting ringslight range shafting collarsGB816-88 84 DIN741 卡头 wire rope clips 85 DIN787 T 型槽螺钉 T-slot screws ISO299 86 DIN835 双头螺柱〔牙长2D〕 studs-metal end2d GB900-88 87 DIN906 内六角锥型闭锁螺钉 hexagon socket pipe plugsconical thread 88 DIN908 内六角直型闭锁螺钉 hexagon socket screw plugscyl. thread 89 DIN909 外六角锥型闭锁螺钉 hexagon head pipe plugsconical thread 90 DIN910 外六角直型闭锁螺钉 hexagon head screw plugscyl.thread 91 DIN911 内六角扳手 socket wrenches ISO2936 92 DIN912 内六角圆柱头螺钉 hexagon socket cap screws ISO4762 GB70-85 93 DIN913 内六角平端紧定螺钉 hexagon socket set screws with flat pointISO4026 GB77-85 94 DIN914 内六角尖端紧定螺钉 hexagon socket set screws 。
