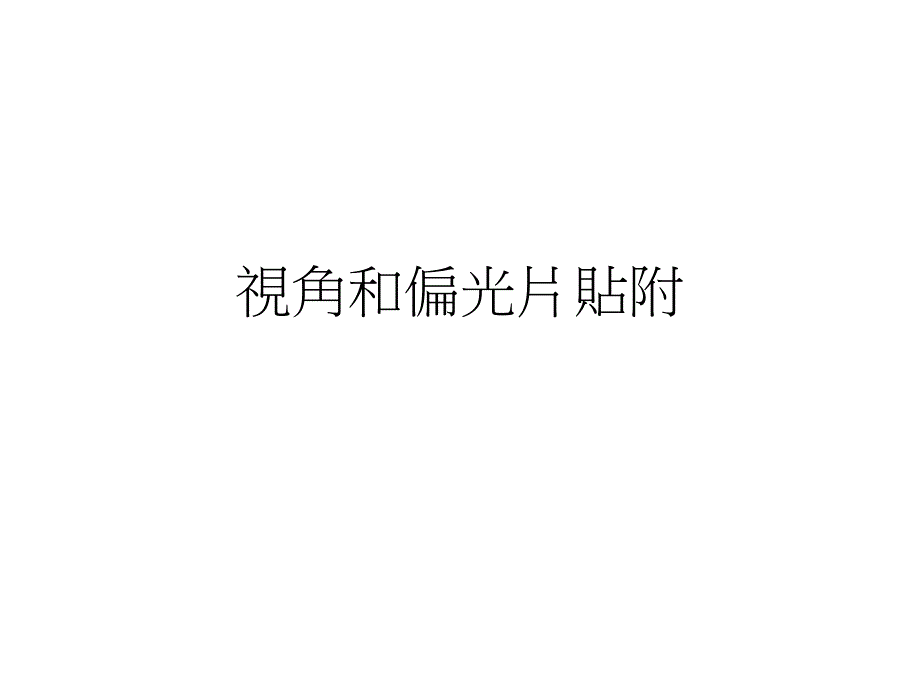

按一下以編輯母片標題樣式,按一下以編輯母片,第二層,第三層,第四層,第五層,*,視角和偏光片貼附,視角的影響因素,:,1 PI,的,Rubbing,取向,.2,液晶自身的旋轉方向,.,相同視角下,Normal,偏光板可以有,O-Mode,和,E-Mode,兩種貼附模式,.,輿,Normal,偏光板不同,WV,和,SWV,僅有,O-Mode,無,E-mode.,*WV,Wide-View宽视角,*SWV,Super Wide-View超宽视角,定義,:,進入,Cell,盒內光波電場的方向與,Cell,盒內,LC,分子排列方向垂直即為,O-mode;,反之,(,光波電場的方向與,LC,分子排列方向平行,),即為,E-mode.,即若下偏光片吸收軸與,Cell,下,Rubbing,方向平行為,O-mode;,反之即為,E-mode.,下面以,2.2Razor cell,為例,比較不同視角,不同貼附模式下偏光板的軸向差,異,:,常用視角輿對應的偏光板軸向規格,3:00,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,3:00,視角,O-Mode,偏貼前,3:00,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,3:00,視角,E-Mode,偏貼前,9:00,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,9:00,視角,O-Mode,偏貼前,9:00,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,9:00,視角,E-Mode,偏貼前,6:00,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,6:00,視角,O-Mode,偏貼前,6:00,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,6:00,視角,E-Mode,偏貼前,12:00,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,12:00,視角,O-Mode,偏貼前,12:00,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,12:00,視角,E-Mode,偏貼前,4:30,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,4:30,視角,O-Mode,偏貼前,4:30,視角,藍色為,TFT Rubbing,方向,紅色為,CF Rubbing,方向,.,L,W,TOP Polarizer,Top view from Protective film side,紅線標示吸收軸向,.,L,W,Bottom Polarizer,Top view from Protective film side,藍線標示吸收軸向,.,CF Polarizer,TFT Polarizer,TFT,CF,偏貼後,TOP Polarizer Protective film,向上,Bottom Polarizer Protective film,向下,4:30,視角,E-Mode,偏貼前,。
