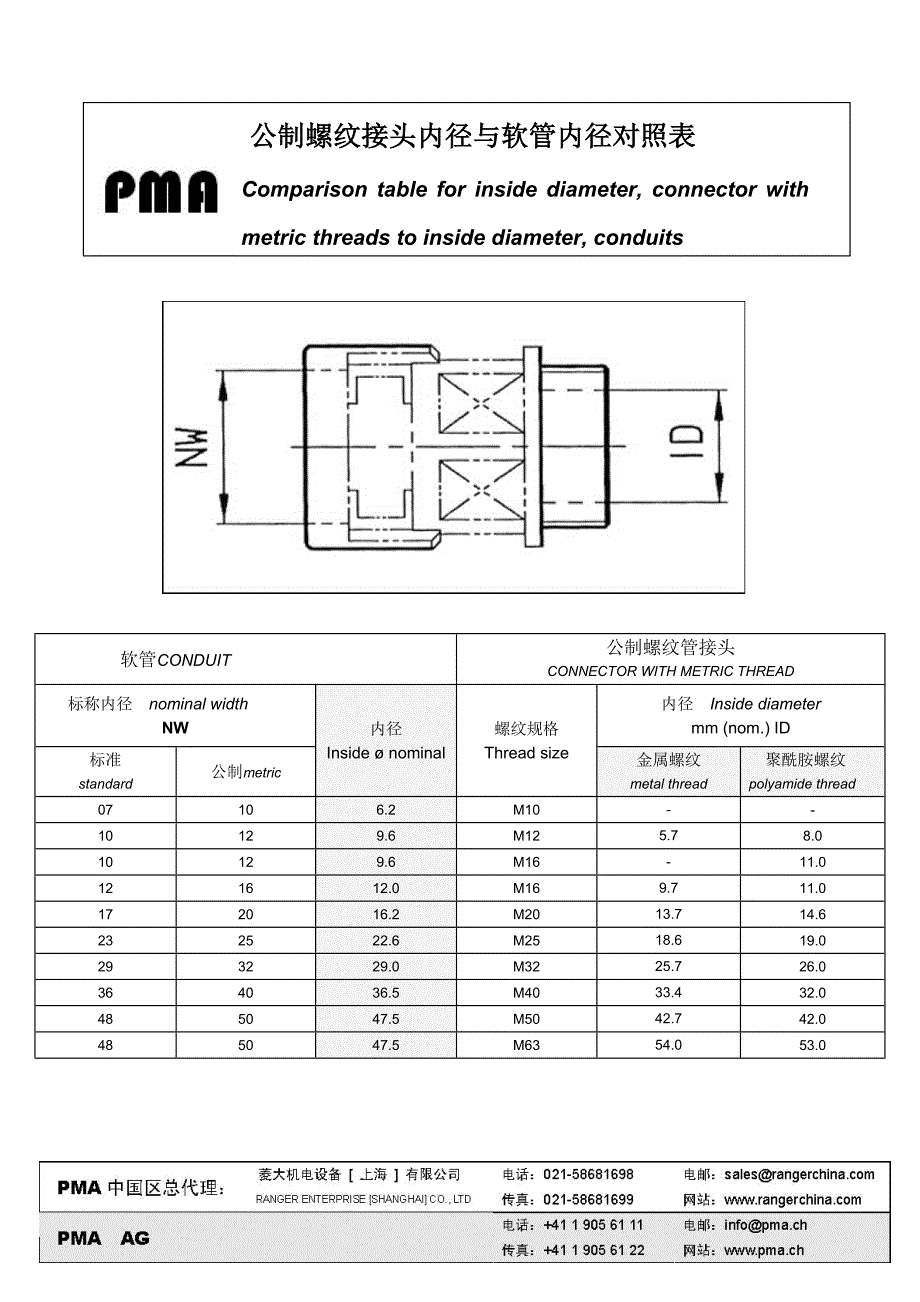

公制螺纹接头内径与软管内径对照表Comparison table for inside diameter, connector with metric threads to inside diameter, conduits 软管CONDUIT公制螺纹管接头CONNECTOR WITH METRIC THREAD 标称内径 nominal widthNW内径Inside ø nominal螺纹规格Thread size内径 Inside diametermm (nom.) ID标准standard公制metric金属螺纹metal thread聚酰胺螺纹polyamide thread 0710 6.2 M10 --1012 9.6 M12 5.7 8.0 1012 9.6 M16 -11.0 1216 12.0 M16 9.7 11.0 1720 16.2 M20 13.7 14.6 2325 22.6 M25 18.6 19.0 2932 29.0 M32 25.7 26.0 3640 36.5 M40 33.4 32.0 4850 47.5 M50 42.7 42.0 4850 47.5 M63 54.0 53.0 PG 螺纹接头内径与软管内径对照表Comparison table for inside diameter, connector with PG threads to inside diameter, conduits 软管CONDUITPG制螺纹管接头CONNECTOR WITH PG THREAD标称内径nominal widthNW内径Inside ø nominal螺纹规格内径 Inside diameter mm (nom.) ID标准standard公制metric Thread size 金属螺纹metal thread聚酰胺螺纹polyamide thread0710 6.2 PG07 -8.0 1012 9.6 PG09 9.5 10.0 1216 12.0 PG11 12.513.0 ---PG13.5 14.514.5 1720 16.2 PG16 16.517.5 2325 22.6 PG21 22.522.5 2932 29.0 PG29 30.530.5 3640 36.5 PG36 40.537.5 ---PG42 -48.0 4850 47.5 PG48 52.050.0 适用于PMA接头扭矩Torques for PMA connectorPMA 接头螺纹推荐扭矩 / Recommended torques for the PMA connector thread对带螺纹孔的开口 / For threaded bore holes 带螺母 / With lock nuts * 螺纹组合：金属＋金属 / Thread combination: metal + metal** 螺纹组合：金属＋聚酰胺或聚酰胺＋聚酰胺 / Thread combination: metal + polyamide or polyamide + polyamide注意：以上数据为近似值。
在实际应用中请考虑螺纹的影响The dates are approximate values. At application please take into account the influence of the counter-thread. 接头带消除应力设计 / Connector to achieve strain relief 当设计和指定安装两个连接点时，以下尺寸应要计算在内在每个管接头内的插入长度要额外计算，请参照下表The following dimensions have to be taken into account if designing and specifying a certain length between two connecting points. The push-in length have to be additionally considered for each connector as mentioned below.如不正确安装，将不能达到指定IP 防水防尘等级1. 使用PMACUT 剪切工具剪切软管，剪切面与软管轴心垂直Straight cut with PMA Cutting tool PMACUT, 90o to the conduit axis. 2. 管卡已预先安装，推入时轻微转动直至不能推入为止。
The retaining clip is pre-mounted. Push in with a slight twist until the stop. 3. 轻微回拉软管，确保锁紧Pull back slightly to ensure the locking mechanism is fully engaged. 4. 在振动或相似情况下的应用建议：为保护螺纹最好使用密封胶或黏合剂如：Loctite） Recommendation for applications under vibrations or similar: Protect threads with commercial adhesive or seal compound (e.g. Loctite). 5. 安装管接头的软管部分不要弯曲，如果定位请使用管夹或其他支撑Do not bend off the PMAFLEX conduit directly after the connector. If necessary destine the direction with a system support or similar. 6. 为安全起见： 需用螺丝刀才能开启管夹。
For safety reasons: To re-open a screwdriver has to be used. 1. 使用PMACUT 剪切工具剪切软管，剪切面与软管轴心垂直Straight cut with PMA Cutting tool PMACUT, 90o to the conduit axis. 2. 软管－密封套－管接头管夹－O 型环或垫圈Conduit – Seal Cap – Connector - Oval Clip – Flat Gasket or O-ring 3. 将密封套安装于软管末端， 根据IEC529/EN60529 标准， 防护等级可达IP68 Push seal cap onto end of conduit to achieve an ingress protection up to IP68 according to IEC 529 / EN 60529. 4. 为安装方便， 密封套可使用水或润滑剂来润滑For ease of installation moisten seal cap with water or lubricant. 5. 将带密封套的软管完全推进接头。
如果密封套没有完全安装好，管卡将不能安装） Push conduit with seal cap with slight twist fully into connector. (For safety reasons, retaining clip will not fit if seal cap is not fully installed.) 6. 推进管卡直至完全配合确保管卡缺口部位在软管侧） Push in the Retaining Oval Clip until the barbed hooks are optimal set. (Ensure that the opening slot of the retaining clip is on conduit side) 7. 在振动或相似情况下的应用建议：为保护螺纹最好使用密封胶或黏合剂如：Loctite） Recommendation for applications under vibrations or similar: Protect threads with commercial adhesive or seal compound (e.g. Loctite). 8. 安装接头的软管部分不要弯曲， 如果定位请使用管夹或其他支撑。
Do not bend off the PMAFLEX conduit directly after the fitting. If necessary destine the direction with a system support or similar. 9. 为安全起见： 需用螺丝刀才能开启管夹For safety reasons: To re-open a screwdriver has to be used. 。
