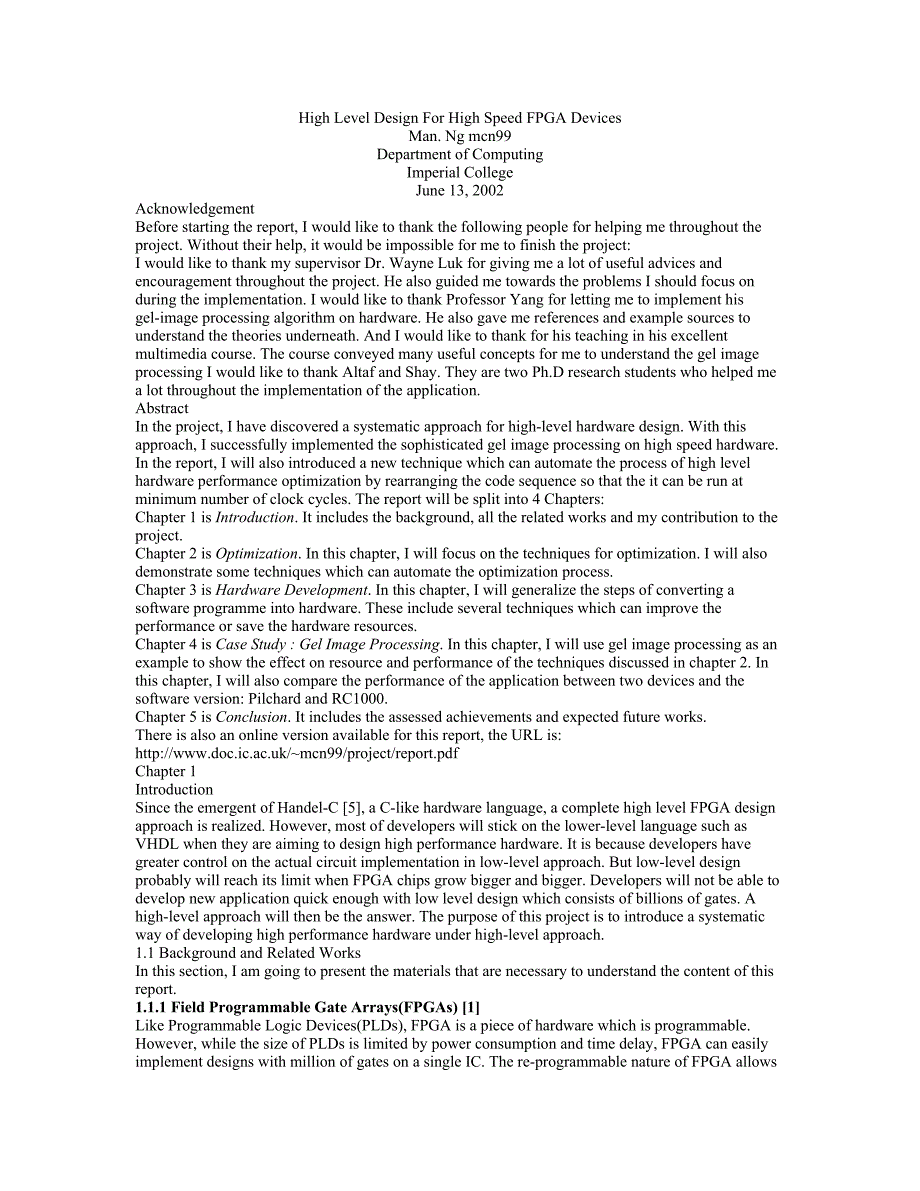

High Level Design For High Speed FPGA DevicesMan. Ng mcn99Department of ComputingImperial CollegeJune 13, 2002AcknowledgementBefore starting the report, I would like to thank the following people for helping me throughout the project. Without their help, it would be impossible for me to finish the project:I would like to thank my supervisor Dr. Wayne Luk for giving me a lot of useful advices and encouragement throughout the project. He also guided me towards the problems I should focus on during the implementation. I would like to thank Professor Yang for letting me to implement his gel-image processing algorithm on hardware. He also gave me references and example sources to understand the theories underneath. And I would like to thank for his teaching in his excellent multimedia course. The course conveyed many useful concepts for me to understand the gel image processing I would like to thank Altaf and Shay. They are two Ph.D research students who helped me a lot throughout the implementation of the application.AbstractIn the project, I have discovered a systematic approach for high-level hardware design. With this approach, I successfully implemented the sophisticated gel image processing on high speed hardware. In the report, I will also introduced a new technique which can automate the process of high level hardware performance optimization by rearranging the code sequence so that the it can be run at minimum number of clock cycles. The report will be split into 4 Chapters:Chapter 1 is Introduction. It includes the background, all the related works and my contribution to the project.Chapter 2 is Optimization. In this chapter, I will focus on the techniques for optimization. I will also demonstrate some techniques which can automate the optimization process.Chapter 3 is Hardware Development. In this chapter, I will generalize the steps of converting a software programme into hardware. These include several techniques which can improve the performance or save the hardware resources.Chapter 4 is Case Study : Gel Image Processing. In this chapter, I will use gel image processing as an example to show the effect on resource and performance of the techniques discussed in chapter 2. In this chapter, I will also compare the performance of the application between two devices and the software version: Pilchard and RC1000.Chapter 5 is Conclusion. It includes the assessed achievements and expected future works.There is also an online version available for this report, the URL is:http://www.doc.ic.ac.uk/~mcn99/project/report.pdfChapter 1IntroductionSince the emergent of Handel-C [5], a C-like hardware language, a complete high level FPGA design approach is realized. However, most of developers will stick on the lower-level language such as VHDL when they are aiming to design high performance hardware. It is because developers have greater control on the actual circuit implementation in low-level approach. But low-level design probably will reach its limit when FPGA chips grow bigger and bigger. Developers will not be able to develop new application quick enough with low level design which consists of billions of gates. A high-level approach will then be the answer. The purpose of this project is to introduce a systematic way of developing high performance hardware under high-level approach.1.1 Background and Related WorksIn this section, I am going to present the materials that are necessary to understand the content of this report.1.1.1 Field Programmable Gate Arrays(FPGAs) [1]Like Programmable Logic Devices(PLDs), FPGA is a piece of hardware which is programmable. However, while the size of PLDs is limited by power consumption and time delay, FPGA can easily implement designs with million of gates on a single IC. The re-programmable nature of FPGA allows developers implements design with shorter development times and lower cost than an equivalent custom VLSI chips. It worths mentioning that development of FPGA is faster than Moore’s Law with capacity doubling every year. With millions of gates available on the newest chip, FPGA is an ideal platform to develop reconfigurable system which is capable of execute complicate application at performance. Therefore, FPGA is the chip I am developing application for.1.1.2 Pilchard [2]Pilchard is a reconfigurable computing platform employing a field programmable gate array(FPGA) which plugs into a standared personal computer’s 133MHz synchronous dynamic RAM Dual In-line Memory Modules(DIMMS)slot. Comparing to traditional FPGA devices which are utilizing the PCI nterface, Pilchard allows data to be transferred to and from the host computer in much shorter time, due to the higher bandwidth as well as the lower latency of the DIMM interface. However, as DIMMS is not originally designed for Input/Output(I/O), extra control signals will be needed for Pilchard to indicate the start and the end of data processing. As a result, high 。
