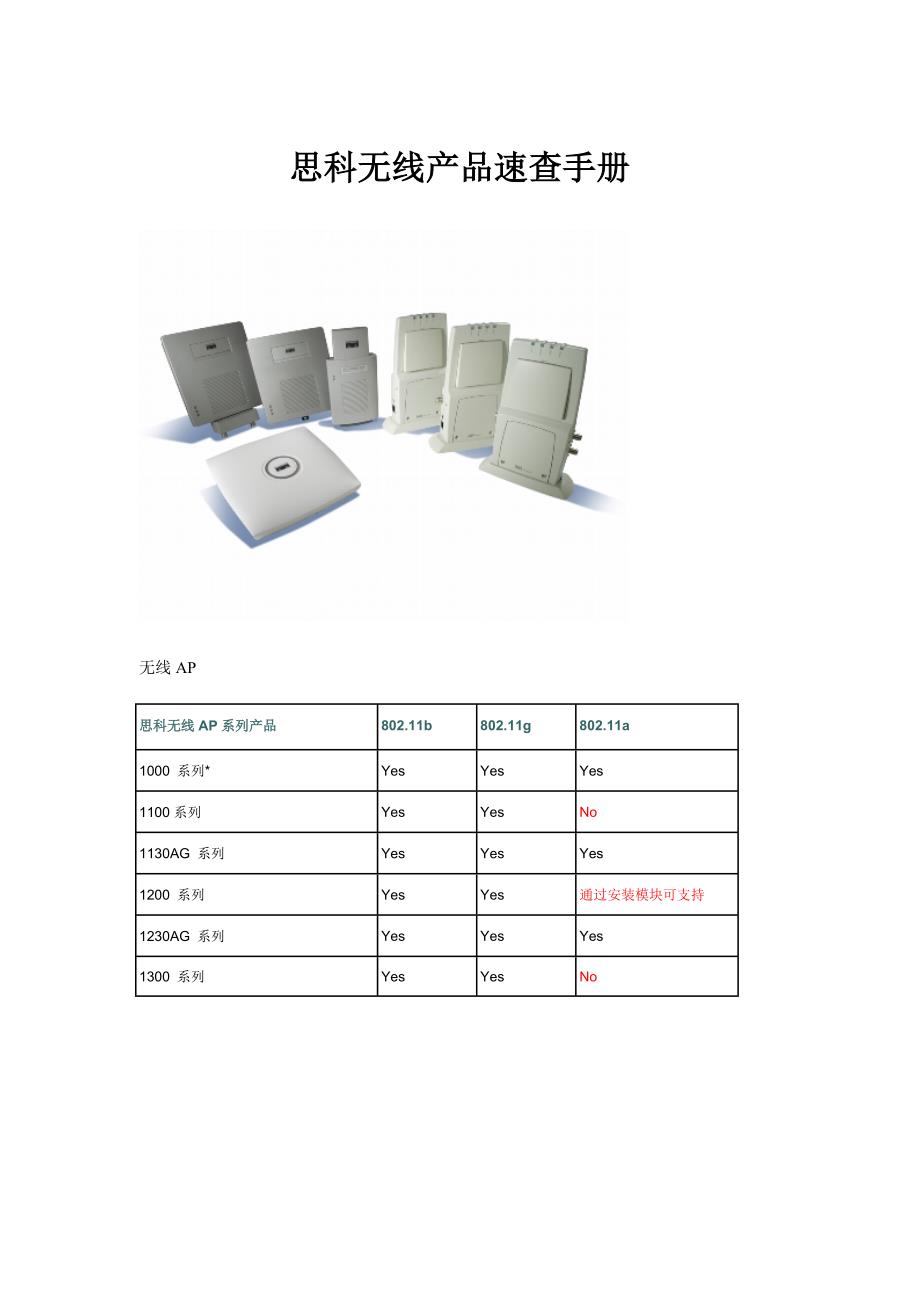

思科无线产品速查手册无线AP思科无线AP系列产品802.11b802.11g802.11a1000 系列*YesYesYes1100系列YesYesNo1130AG 系列YesYesYes1200 系列YesYes通过安装模块可支持1230AG 系列YesYesYes1300 系列YesYesNo思科AP产品特性优点在办公室和相似的环境使用的AP思科 1130AG系列AP薄外形, 集成天线的企业级AP ，轻松布署在办公室和相似的RF环境• 两个高可靠性的 IEEE 802.11a 和 802.11g 无线模块提供 108 Mbps 容量• 2.4 and 5 GHz 集成差异集成天线, 轻松布署不用外加天线•薄塑胶外壳• 16 MB Flash 内存• 可在0 到 40°C的环境下正常工作• 支持Inline power (POE 和 802.3af)• Console端口管理 • 支持 WPA 和 802.11i/WPA2• 通过软件包升级可支持LWAPP • 思科分布式无线解决方案• 顺从IEEE 802.11a/b/g 标准布署在高容量的无线网络• 迅速安装和轻松管理其所长、• Ro4bust and predictable coverage for offices and similar RF environments• 低成• 通过相互认证和动态加密来达到企业级安全。
• Deployable today as an autonomous access point• Upgradeable in the future to operate as a lightweight access point思科Aironet 1100 系列AP提供轻松安装，单频带 802.11g AP• 单 802.11g无线模块支持最大54 Mbps的传输速率• 2.4 GHz 集成分极集偶极天线• 8 MB Flash 内存•可在 0 到 40°C环境下正常工作• 支持Inline power (思科POE)• 支持 WPA 和802.11i/WPA2• 思科分布式集成解决方案• Affordable 802.11g connectivity• Easy-to-install, cost-efficient deployment for offices and similar RF environments• Backward-compatible with 802.11b• Enterprise-class security via strong mutual authentication and dynamic encryption• Deployable today as an autonomous access point思科 Aironet 1000系列轻量级AP802.11a/b/g 轻量级AP，集成天线和外部天线连接器works in conjunction with the Cisco Wireless LAN Controller for system-level performance, security, and scalability.• 支持全部 LWAPP •同时空中监控 和数据服务• 802.11a and 802.11g 无线模块提供 108 Mbps 容量• 2.4 and 5 GHz 集成分集式天线•支持 Inline power (802.3af)•支持 WPA 和 802.11i/WPA2• 思科集中式 WLAN 解决方案• Zero-configuration and management reduces deployment costs and time• Integrated RF management, location and security with no additional equipment simplifies network design reduces hardware costs• IEEE 802.11a/b/g compliance for high-capacity wireless networking• Ready to install for offices and similar RF environments• Enterprise-class security via strong mutual authentication and dynamic encryption在复杂RF环境使用的AP思科 Aironet 1230AG系列AP预装 802.11a/g 双频带思科 Aironet 1200 系列， 可布署在复杂的环境， 像工厂和仓库类似的环境。
• 两个高可靠性 IEEE 802.11a and 802.11g 无线模块提供 108 Mbps容量• 2.4GHz 和5GHz 天线连接器，可通过广泛的可选思科天线实现更大信号范围和更灵活的安装选项•通过过软件升级支持LWAPP • 思科分布式解决方案• IEEE 802.11a/b/g compliance for high-capacity wireless networking• Deployable today as an autonomous access point• Upgradeable in the future to operate as a lightweight access point思科 Aironet 1200 系列AP当只配置 802.11g 无线模块的AP, the 1200 系列提供合理价位的, 单频带解决方案可布署在复杂的环境， 像工厂和仓库类似的环境• 单802.11g无线模块支持最大 54 Mbps传输速率• 可以通过硬件升级支持 802.11a • 思科分布式集成解决方案• Provides flexibility to deploy an 802.11g network now, with the option to upgrade to a dual-band 802.11a/g network in the future• Deployable today as an autonomous access point思科 Aironet 1230AG 系列和1200 系列AP两种AP是为比较复杂的室内无线应用而设计的 and 提供同样的多功能性, 高容量, 和安全特性 ，布署在企业级无线环境。
• 模块化设计允许单频或双频配置 在2.4和 5 GH可达到54 Mbps 连接速率 • 8 MB Flash 内存• 金属外壳和延长的操作温度 -20 to 55°C• 多用途托架,可以固定在墙上;天花板上和桌面上.两个分开的锁装置•支持 Inline power (POE)• 支持 WPA和 802.11i/WPA2• Reliable WLAN coverage in challenging deployments that have high multipath or extreme environmental requirements• Enterprise-class security via strong mutual authentication and dynamic encryption布署在室外的AP/网桥思科 Aironet 1300系列室外AP/网桥理想的室外公共访问区域, 和校园区域连接, 或移动网络的基础构架.•可配置成 AP, 无线网桥, 工作组网桥• 支持点到;点到多点配置.•工业领先的吞吐量和传输速率达到 54 Mbps• Rugged enclosure optimized for harsh outdoor environments with extended operating temperature range• 集成或可选的天线 for flexibility in deployment• Designed specifically for ease of installation and operation• Support for WPA and 802.11i/WPA2 in access point and workgroup bridge mode and WPA and AES in wireless bridge mode• Cisco Distributed WLAN Solution component when configured as an access point• Network connections within a campus area• Outdoor infrastructure for mobile networks and users• Public access for outdoor areas• Temporary networks for portable or military operations• Enterprise-class security via strong mutual authentication and dynamic encryption• Deployable today as an autonomous access point* The Cisco Aironet 1000 Series lightweight access point is used in conjunction with a Cisco Wireless LAN Controller.PRODUCT SPECIFICATIONSTable 1. Specifications of Cisco Aironet Power InjectorDescriptionCisco Aironet Power Injector Media ConverterCisco Aironet Power Injector for 1100, 1200 Series350 Series Single Port Power InjectorPart NumberAIR-PWRINJ-FIBAIR-PWRINJ3AIR-PWRINJLAN Connection• Max Fiber cable length: 2 km• Type: MT-RJ (multimode fiber)• Label: 100BASE-FX To Network• Speed: 100 Mbps• Duplex: Full• Max Cat 5 cable length: 100 m from switch to device• Type: RJ-45• Label: 10/100BASE-TX To Network• Max Cat 5 cable length: 100 m• Type: RJ-45• Label: To NetworkDevice Connection• Max Cat 5 cable length: 100 。
